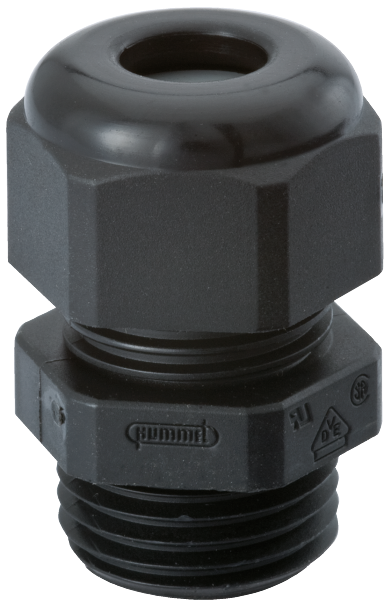

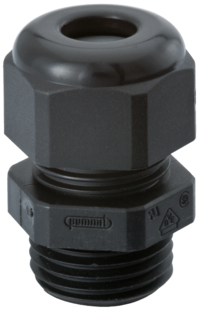

Kabelverschraubung aus Polyamid

Material	Polyamid V0 nach UL94
Formdichtung	NBR
Schutzart	IP 54, mit zusätzlichem O-Ring: IP68 - 10bar/30min, IP 69 K
Type Rating nach	12, 4, 4X, 6 (mit zusätzlichem O-Ring), UL 50E

Temperaturbereich	-40°C bis +100°C
Farbe	grau, schwarz, Blau
Variante	PG, PG-lang, NPT, Metr., Metr.-lang

3D-Daten herunterladen

RoHS
Bahnzulassung
ULF1
CSA
CE
DNV
VDE
cUR
UR
cUL
UL

Filter

Farbe Farbe grau schwarz	Außengewinde (AG) AG M12 x 1,5 M16 x 1,5 M20 x 1,5 M25 x 1,5 M32 x 1,5 M40 x 1,5 M50 x 1,5 M63 x 1,5 NPT 1 1/2" NPT 1 1/4" NPT 1" NPT 1/2" NPT 3/4" NPT 3/8" PG 7 PG 9 PG 11 PG 13,5 PG 16 PG 21 PG 29 PG 36 PG 42 PG 48	Kabeldurchmesser Kabel-Ø 2 – 5 mm 2 – 6 mm 3 – 6,5 mm 3 – 7 mm 4 – 8 mm 5 – 9 mm 5 – 10 mm 6 – 12 mm 7 – 12 mm 9 – 16 mm 10 – 14 mm 13 – 18 mm 13 – 20 mm 14 – 21 mm 18 – 25 mm 19 – 27 mm 20 – 26 mm 22 – 32 mm 25 – 31 mm 29 – 35 mm 32 – 38 mm 37 – 44 mm	Gewindelänge (GL) (mm) GL (mm) 8 9 10 11 13 14 15 16 18 19 20	Höhe (H) (mm) H (mm) 21 22 25 27 28 31 39 47 48 49	Schlüsselweite (SW1/SW2) SW1/SW2 15/15 mm 19/19 mm 19/22 mm 22/22 mm 24/24 mm 27/27 mm 30/30 mm 33/33 mm 36/36 mm 42/42 mm 42/46 mm 46/46 mm 53/53 mm 60/60 mm 65/65 mm 65/68 mm	Art.-Nr.
Zurücksetzen
grau	PG 7	3 – 6,5 mm	8	21	15/15 mm	1.209.0700.14
grau	PG 7	2 – 5 mm	8	21	15/15 mm	1.209.0700.15
schwarz	PG 7	3 – 6,5 mm	8	21	15/15 mm	1.209.0701.14
schwarz	PG 7	2 – 5 mm	8	21	15/15 mm	1.209.0701.15
schwarz	PG 7	3 – 6,5 mm	15	21	15/15 mm	1.209.0701.60
schwarz	PG 7	2 – 5 mm	15	21	15/15 mm	1.209.0701.61
grau	PG 9	4 – 8 mm	8	22	19/19 mm	1.209.0900.14
grau	PG 9	2 – 6 mm	8	22	19/19 mm	1.209.0900.15
schwarz	PG 9	4 – 8 mm	8	22	19/19 mm	1.209.0901.14
schwarz	PG 9	2 – 6 mm	8	22	19/19 mm	1.209.0901.15
schwarz	PG 9	4 – 8 mm	15	22	19/19 mm	1.209.0901.60
grau	NPT 1"	18 – 25 mm	19	39	42/42 mm	1.209.1000.70
grau	NPT 1"	13 – 20 mm	19	39	42/42 mm	1.209.1000.71
schwarz	NPT 1"	18 – 25 mm	19	39	42/42 mm	1.209.1001.70
schwarz	NPT 1"	13 – 20 mm	19	39	42/42 mm	1.209.1001.71
grau	PG 11	5 – 10 mm	8	25	22/22 mm	1.209.1100.14
grau	PG 11	3 – 7 mm	8	25	22/22 mm	1.209.1100.15
schwarz	PG 11	5 – 10 mm	8	25	22/22 mm	1.209.1101.14
schwarz	PG 11	3 – 7 mm	8	25	22/22 mm	1.209.1101.15
schwarz	PG 11	5 – 10 mm	15	25	22/22 mm	1.209.1101.60
schwarz	PG 11	3 – 7 mm	15	25	22/22 mm	1.209.1101.61
grau	M12 x 1,5	3 – 6,5 mm	15	21	15/15 mm	1.209.1200.30
grau	M12 x 1,5	2 – 5 mm	15	21	15/15 mm	1.209.1200.31
grau	M12 x 1,5	3 – 6,5 mm	8	21	15/15 mm	1.209.1200.50
grau	M12 x 1,5	2 – 5 mm	8	21	15/15 mm	1.209.1200.51
grau	NPT 1/2"	6 – 12 mm	13	27	24/24 mm	1.209.1200.70
grau	NPT 1/2"	5 – 9 mm	13	27	24/24 mm	1.209.1200.71
schwarz	M12 x 1,5	3 – 6,5 mm	15	21	15/15 mm	1.209.1201.30
schwarz	M12 x 1,5	2 – 5 mm	15	21	15/15 mm	1.209.1201.31
schwarz	M12 x 1,5	3 – 6,5 mm	8	21	15/15 mm	1.209.1201.50
schwarz	M12 x 1,5	2 – 5 mm	8	21	15/15 mm	1.209.1201.51
schwarz	NPT 1/2"	6 – 12 mm	13	27	24/24 mm	1.209.1201.70
schwarz	NPT 1/2"	5 – 9 mm	13	27	24/24 mm	1.209.1201.71
grau	NPT 1/2"	10 – 14 mm	13	28	27/27 mm	1.209.1216.70
schwarz	NPT 1/2"	10 – 14 mm	13	28	27/27 mm	1.209.1217.70
schwarz	NPT 1/2"	7 – 12 mm	13	28	27/27 mm	1.209.1217.71
grau	PG 13,5	6 – 12 mm	9	27	24/24 mm	1.209.1300.14
grau	PG 13,5	5 – 9 mm	9	27	24/24 mm	1.209.1300.15
schwarz	PG 13,5	6 – 12 mm	9	27	24/24 mm	1.209.1301.14
schwarz	PG 13,5	5 – 9 mm	9	27	24/24 mm	1.209.1301.15
schwarz	PG 13,5	6 – 12 mm	15	27	24/24 mm	1.209.1301.60
schwarz	PG 13,5	5 – 9 mm	15	27	24/24 mm	1.209.1301.61
grau	PG 16	10 – 14 mm	10	28	27/27 mm	1.209.1600.14
grau	PG 16	7 – 12 mm	10	28	27/27 mm	1.209.1600.15
grau	M16 x 1,5	4 – 8 mm	15	22	19/19 mm	1.209.1600.30
grau	M16 x 1,5	2 – 6 mm	15	22	19/19 mm	1.209.1600.31
grau	M16 x 1,5	4 – 8 mm	8	22	19/19 mm	1.209.1600.50
grau	M16 x 1,5	2 – 6 mm	8	22	19/19 mm	1.209.1600.51
schwarz	PG 16	10 – 14 mm	10	28	27/27 mm	1.209.1601.14
schwarz	PG 16	7 – 12 mm	10	28	27/27 mm	1.209.1601.15
schwarz	M16 x 1,5	4 – 8 mm	15	22	19/19 mm	1.209.1601.30
schwarz	M16 x 1,5	2 – 6 mm	15	22	19/19 mm	1.209.1601.31
schwarz	M16 x 1,5	4 – 8 mm	8	22	19/19 mm	1.209.1601.50
schwarz	M16 x 1,5	2 – 6 mm	8	22	19/19 mm	1.209.1601.51
schwarz	PG 16	10 – 14 mm	15	28	27/27 mm	1.209.1601.60
schwarz	PG 16	7 – 12 mm	15	28	27/27 mm	1.209.1601.61
grau	M20 x 1,5	6 – 12 mm	15	27	24/24 mm	1.209.2000.30
grau	M20 x 1,5	5 – 9 mm	15	27	24/24 mm	1.209.2000.31
grau	M20 x 1,5	6 – 12 mm	9	27	24/24 mm	1.209.2000.50
grau	M20 x 1,5	5 – 9 mm	9	27	24/24 mm	1.209.2000.51
schwarz	M20 x 1,5	6 – 12 mm	15	27	24/24 mm	1.209.2001.30
schwarz	M20 x 1,5	5 – 9 mm	15	27	24/24 mm	1.209.2001.31
schwarz	M20 x 1,5	6 – 12 mm	9	27	24/24 mm	1.209.2001.50
schwarz	M20 x 1,5	5 – 9 mm	9	27	24/24 mm	1.209.2001.51
grau	PG 21	13 – 18 mm	11	31	33/33 mm	1.209.2100.14
grau	PG 21	9 – 16 mm	11	31	33/33 mm	1.209.2100.15
schwarz	PG 21	13 – 18 mm	11	31	33/33 mm	1.209.2101.14
schwarz	PG 21	9 – 16 mm	11	31	33/33 mm	1.209.2101.15
schwarz	PG 21	13 – 18 mm	15	31	33/33 mm	1.209.2101.60
schwarz	PG 21	9 – 16 mm	15	31	33/33 mm	1.209.2101.61
grau	M25 x 1,5	13 – 18 mm	15	31	33/33 mm	1.209.2500.30
grau	M25 x 1,5	9 – 16 mm	15	31	33/33 mm	1.209.2500.31
grau	M25 x 1,5	13 – 18 mm	11	31	33/33 mm	1.209.2500.50
grau	M25 x 1,5	9 – 16 mm	11	31	33/33 mm	1.209.2500.51
schwarz	M25 x 1,5	13 – 18 mm	15	31	33/33 mm	1.209.2501.30
schwarz	M25 x 1,5	9 – 16 mm	15	31	33/33 mm	1.209.2501.31
schwarz	M25 x 1,5	13 – 18 mm	11	31	33/33 mm	1.209.2501.50
schwarz	M25 x 1,5	9 – 16 mm	11	31	33/33 mm	1.209.2501.51
grau	PG 29	18 – 25 mm	11	39	42/42 mm	1.209.2900.14
grau	PG 29	13 – 20 mm	11	39	42/42 mm	1.209.2900.15
schwarz	PG 29	18 – 25 mm	11	39	42/42 mm	1.209.2901.14
schwarz	PG 29	13 – 20 mm	11	39	42/42 mm	1.209.2901.15
schwarz	PG 29	18 – 25 mm	15	39	42/42 mm	1.209.2901.60
schwarz	PG 29	13 – 20 mm	15	39	42/42 mm	1.209.2901.61
grau	M32 x 1,5	18 – 25 mm	15	39	42/42 mm	1.209.3200.30
grau	M32 x 1,5	13 – 20 mm	15	39	42/42 mm	1.209.3200.31
grau	M32 x 1,5	18 – 25 mm	11	39	42/42 mm	1.209.3200.50
grau	M32 x 1,5	13 – 20 mm	11	39	42/42 mm	1.209.3200.51
schwarz	M32 x 1,5	18 – 25 mm	15	39	42/42 mm	1.209.3201.30
schwarz	M32 x 1,5	13 – 20 mm	15	39	42/42 mm	1.209.3201.31
schwarz	M32 x 1,5	18 – 25 mm	11	39	42/42 mm	1.209.3201.50
schwarz	M32 x 1,5	13 – 20 mm	11	39	42/42 mm	1.209.3201.51
grau	NPT 3/4"	13 – 18 mm	14	31	33/33 mm	1.209.3400.70
grau	NPT 3/4"	9 – 16 mm	14	31	33/33 mm	1.209.3400.71
schwarz	NPT 3/4"	13 – 18 mm	14	31	33/33 mm	1.209.3401.70
schwarz	NPT 3/4"	9 – 16 mm	14	31	33/33 mm	1.209.3401.71
schwarz	PG 36	22 – 32 mm	13	48	53/53 mm	1.209.3601.14
schwarz	PG 36	20 – 26 mm	13	48	53/53 mm	1.209.3601.15
schwarz	PG 36	22 – 32 mm	18	48	53/53 mm	1.209.3601.60
schwarz	PG 36	20 – 26 mm	18	48	53/53 mm	1.209.3601.61
grau	NPT 3/8"	4 – 8 mm	15	22	19/22 mm	1.209.3800.70
grau	NPT 3/8"	2 – 6 mm	15	22	19/22 mm	1.209.3800.71
schwarz	NPT 3/8"	4 – 8 mm	15	22	19/22 mm	1.209.3801.70
schwarz	NPT 3/8"	2 – 6 mm	15	22	19/22 mm	1.209.3801.71
grau	M40 x 1,5	22 – 32 mm	18	48	53/53 mm	1.209.4000.30
grau	M40 x 1,5	22 – 32 mm	13	48	53/53 mm	1.209.4000.50
grau	M40 x 1,5	20 – 26 mm	13	48	53/53 mm	1.209.4000.51
schwarz	M40 x 1,5	22 – 32 mm	18	48	53/53 mm	1.209.4001.30
schwarz	M40 x 1,5	20 – 26 mm	18	48	53/53 mm	1.209.4001.31
schwarz	M40 x 1,5	22 – 32 mm	13	48	53/53 mm	1.209.4001.50
schwarz	M40 x 1,5	20 – 26 mm	13	48	53/53 mm	1.209.4001.51
schwarz	PG 42	32 – 38 mm	13	49	60/60 mm	1.209.4201.14
schwarz	PG 42	25 – 31 mm	13	49	60/60 mm	1.209.4201.15
schwarz	PG 42	32 – 38 mm	18	49	60/60 mm	1.209.4201.60
schwarz	PG 42	25 – 31 mm	18	49	60/60 mm	1.209.4201.61
schwarz	PG 48	37 – 44 mm	14	49	65/65 mm	1.209.4801.14
schwarz	PG 48	29 – 35 mm	14	49	65/65 mm	1.209.4801.15
schwarz	PG 48	37 – 44 mm	18	49	65/65 mm	1.209.4801.60
schwarz	PG 48	29 – 35 mm	18	49	65/65 mm	1.209.4801.61
grau	M50 x 1,5	32 – 38 mm	18	49	60/60 mm	1.209.5000.30
grau	M50 x 1,5	25 – 31 mm	18	49	60/60 mm	1.209.5000.31
grau	M50 x 1,5	32 – 38 mm	13	49	60/60 mm	1.209.5000.50
grau	M50 x 1,5	25 – 31 mm	13	49	60/60 mm	1.209.5000.51
schwarz	M50 x 1,5	32 – 38 mm	18	49	60/60 mm	1.209.5001.30
schwarz	M50 x 1,5	25 – 31 mm	18	49	60/60 mm	1.209.5001.31
schwarz	M50 x 1,5	32 – 38 mm	13	49	60/60 mm	1.209.5001.50
schwarz	M50 x 1,5	25 – 31 mm	13	49	60/60 mm	1.209.5001.51
grau	NPT 1 1/4"	18 – 25 mm	16	39	42/46 mm	1.209.5400.70
grau	NPT 1 1/4"	13 – 20 mm	16	39	42/46 mm	1.209.5400.71
schwarz	NPT 1 1/4"	18 – 25 mm	16	39	42/46 mm	1.209.5401.70
schwarz	NPT 1 1/4"	13 – 20 mm	16	39	42/46 mm	1.209.5401.71
grau	M63 x 1,5	37 – 44 mm	18	49	65/68 mm	1.209.6300.30
grau	M63 x 1,5	29 – 35 mm	18	49	65/68 mm	1.209.6300.31
grau	M63 x 1,5	37 – 44 mm	14	49	65/68 mm	1.209.6300.50
grau	M63 x 1,5	29 – 35 mm	14	49	65/68 mm	1.209.6300.51
schwarz	M63 x 1,5	37 – 44 mm	18	49	65/68 mm	1.209.6301.30
schwarz	M63 x 1,5	29 – 35 mm	18	49	65/68 mm	1.209.6301.31
schwarz	M63 x 1,5	37 – 44 mm	14	49	65/68 mm	1.209.6301.50
schwarz	M63 x 1,5	29 – 35 mm	14	49	65/68 mm	1.209.6301.51
grau	NPT 1 1/2"	22 – 32 mm	20	48	53/53 mm	1.209.6400.70
grau	NPT 1 1/2"	20 – 26 mm	20	48	53/53 mm	1.209.6400.71
schwarz	NPT 1 1/2"	22 – 32 mm	20	48	53/53 mm	1.209.6401.70
schwarz	NPT 1 1/2"	20 – 26 mm	20	48	53/53 mm	1.209.6401.71
grau	M16 x 1,5	5 – 10 mm	15	25	22/22 mm	1.219.1600.30
grau	M16 x 1,5	5 – 10 mm	8	25	22/22 mm	1.219.1600.50
schwarz	M16 x 1,5	5 – 10 mm	15	25	22/22 mm	1.219.1601.30
schwarz	M16 x 1,5	5 – 10 mm	8	25	22/22 mm	1.219.1601.50
grau	M20 x 1,5	10 – 14 mm	15	28	27/27 mm	1.219.2000.30
grau	M20 x 1,5	10 – 14 mm	9	28	27/27 mm	1.219.2000.50
schwarz	M20 x 1,5	10 – 14 mm	15	28	27/27 mm	1.219.2001.30
schwarz	M20 x 1,5	10 – 14 mm	9	28	27/27 mm	1.219.2001.50
grau	M25 x 1,5	13 – 18 mm	11	31	30/30 mm	1.219.2500.50
schwarz	M25 x 1,5	13 – 18 mm	11	31	30/30 mm	1.219.2501.50
grau	M32 x 1,5	14 – 21 mm	11	39	36/36 mm	1.219.3200.50
grau	M40 x 1,5	19 – 27 mm	13	47	46/46 mm	1.219.4000.50
