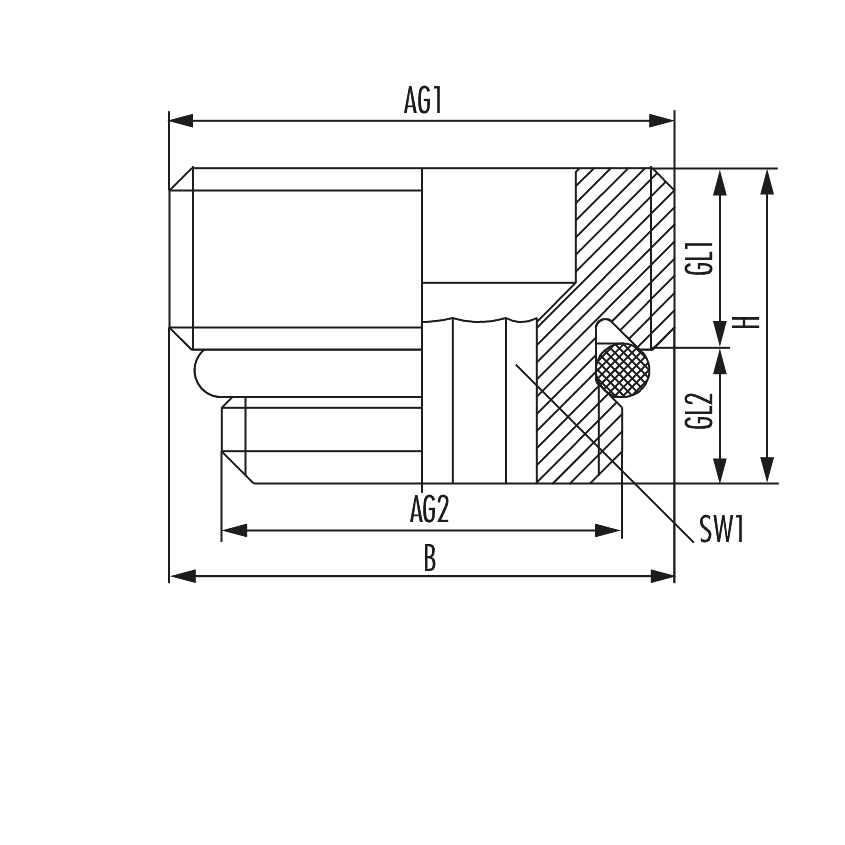

| Connection size 1 (AG1) | G 3/4 |
| Connection size 2 (AG2) | G 1/2 |
| Connection type 1 (AT1) | External thread |
| Connection type 2 (AT2) | External thread |
| Length (L) | 26.4 mm |
| Width (B) | 26.4 mm |
| Height (H) | 16.5 mm |
| Thread Length 1 (GL1) | 9.5 mm |
| Thread Length 2 (GL2) | 7 mm |
| Wrench size 1 (SW1) | 12 mm |
| Suitable for | HUMMEL Basis and BasisPLUS valves |
| Mounting form | Straight-type |
| Material | Brass blank |
| Material moulded seal | EPDM |
| Max. operating pressure | 10 bar |
| Max. operating temperature heating | 120 °C |
