All-in-one:

Power, Signal and Ethernet

Circular connectors Hybrid

Single cable solutions with hybrid connectors (OCT - One Cable Technology) are becoming increasingly important in automation and robotics. They transmit power, signals and Ethernet in one connection. This saves assembly time, space and money.

A characteristic feature of HUMMEL AG connectors is their absolute suitability for industrial applications. Metal housings protect the sensitive and impact-sensitive contact inserts safely and reliably. The various housing designs, inserts and contacts can be combined and thus offer the user a wide range of variants.

Webinar Hybrid Circular Connectors

By starting the video, you consent to your data being transmitted to YouTube and confirm that you have read the privacy policy.

Hybrid connectors transmit power, signals and Ethernet in one connection. This webinar shows for which series HUMMEL AG offers hybrid connectors and how they are assembled.

Hybrid products

Circular connectors M40 Hybrid

The robust power pack

The M40 Hybrid combines the power of the standard series with the versatility of a hybrid connector. This circular connector transmits power up to 55 A and parallel data rates up to 100 Mbps. A special feature are the high electrical characteristics of the signal contacts. They enable users in servo technology to achieve transmission rates of up to 300 V/7 A for brakes.

  • Compact and robust design
  • Absolute industrial suitability for rough environments
  • Screw or quick release fastener

to the product M40 Hybrid

M40 Hybrid 2 x Ethernet

  Power Signal Ethernet
Number of contacts 4 + PE 4 + 2 2
Contact diameter 3.6 mm 1 mm 1 mm
Terminal cross section 2.5 – 16 mm² 0.14 – 1.5 mm² 0.14 – 1 mm²
Nominal current 55 A 7 A 1.2 A
Nominal voltage until 600 V~ 150/300 V~ 30 V~
Test voltage 4000 V~ 840/2500 V~ 840 V~
Data transmission Cat5e





M40 Hybrid 6 x Ethernet

  Power Signal Ethernet
Number of contacts 4 + PE 4 + 2 6
Contact diameter 3.6 mm 1 mm 0.6 mm
Terminal cross section 2.5 – 16 mm² 0.14 – 1.5 mm² 0.05 – 0.34 mm²
Nominal current 55 A 7 A 1.2 A
Nominal voltage until 600 V~ 150/300 V~ 30 V~
Test voltage 4000 V~ 840/2500 V~ 840 V~
Data transmission 100





Product video M40 Hybrid

By starting the video, you consent to your data being transmitted to YouTube and confirm that you have read the privacy policy.
Circular connectors M23 Hybrid Type 1

The powerful all-in-one solution

The M23 Hybrid is the compact all-in-one solution for power, Fast Ethernet and signal transmission. The connector combines CAT.5e data transmission with high power density. This makes the M23 Hybrid the ideal solution for single cable applications in automation and robotics.

  • Numerous housing designs
  • Modular construction offers many variants
  • Screw or quick release fastener
  • TWILOCK-S: pluggable with Speedtec

to the product M23 Hybrid Type 1

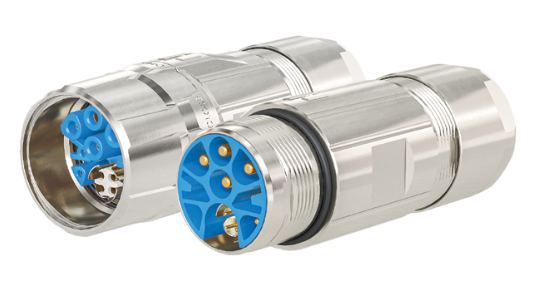

M23 Hybrid Type 1 4 x Ethernet

  Power Signal Ethernet
Number of contacts 3 + PE 4 4
Contact diameter 2 mm 1 mm 0.6 mm
Terminal cross section 0.75 – 4 mm² 0.14 – 1.5 mm² 0.08 – 0.34 mm²
Nominal current 28 A 8 A 2 A
Nominal voltage until 600 AC 300 V~ 60 V~
850 DC
Test voltage 4000 V~ 2500 V~ 500 V~
Data transmission > 500 Mbps





Product video M23 Hybrid

By starting the video, you consent to your data being transmitted to YouTube and confirm that you have read the privacy policy.
Circular connectors M23 Hybrid Type 2

The hybrid connector for innovative applications

Characteristic for the hybrid connectors of the M23 series is the high performance in a compact design. New in this series is the M23 Hybrid Type 2 (4+4+4+PE) with four power contacts. This connector is DC-capable, i.e. it can also be used in DC networks. The four Ethernet contacts transmit data up to 500 Mbit/s with a power handling of up to 28 A / 630 V.

  • Numerous housing designs
  • Modular design offers many variants
  • Screw or quick lock
  • TWILOCK-S: pluggable with Speedtec

M23 Hybrid Type 2 4 x Ethernet

  Power Signal Ethernet
Number of contacts 4 + PE 4 4
Contact diameter 2 mm 1 mm 0.8 mm
Terminal cross section 0.75 – 4 mm² 0.14 – 1.5 mm² 0.08 – 0.34 mm²
Nominal current 28 A 8 A 2 A
Nominal voltage until 600 AC 50 V~ 50 V~
850 DC
Test voltage 3310 V~ 500 V~ 500 V~
Data transmission > 500 Mbps









Product video M23 Hybrid

By starting the video, you consent to your data being transmitted to YouTube and confirm that you have read the privacy policy.

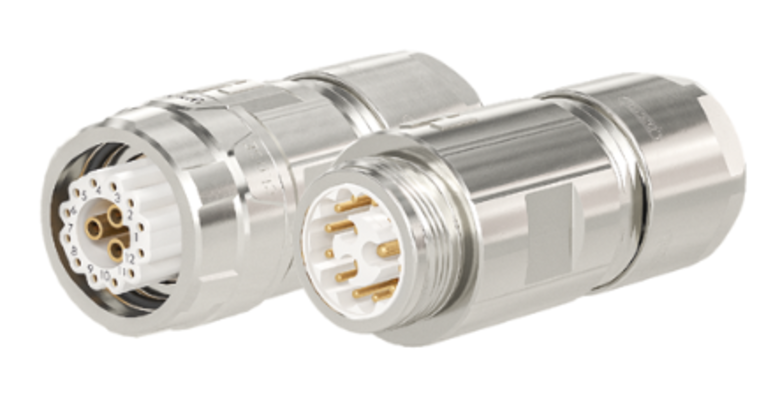

Circular connectors Hybrid M16 (12+3)

The proven and compact connection solution

The M16 connector (12+3) offers a proven solution. With power processing up to 12 A and a data transmission rate of up to 100 Mbps, the user has a compact connection solution with attractive performance data at his disposal.

  • Proven and compact solution
  • Power processing up to 12 A
  • Low space requirement, low weight
  • Ideal for limited installation space and small end devices

to the product M16 (12+3)



  Power Signal/Ethernet
Number of contacts 3 12
Contact diameter 1.25 mm 0.8 mm
Terminal cross section 0.5 – 1.5 mm² 0.08 – 0.34 mm²
Nominal current 12 A 3 A
Nominal voltage until 60 V~ 24 V~
Test voltage 2500 V~ 1500 V~
Data transmission





Product video M16 (12+3)

By starting the video, you consent to your data being transmitted to YouTube and confirm that you have read the privacy policy.

Information

Hybrid circular connectors

Hybrid connectors combine various electrical functions in one unit. They transmit power, signals (analog) and data/Ethernet (digital).

The advantages:

  • One connector instead of 2 or 3 (⇒ at least halving)
  • Reduced space requirement
  • Shorter processing time for connector assembly
  • Reduced costs
  • Less weight on the end device (e.g. motor)
  • Option: Several cables can also be brought together in one connector. (Multi)



The HUMMEL advantages

Features of HUMMEL circular connectors:

  • Robust design
  • Mechanical protection of the contact inserts
  • No protruding plastic inserts
  • Better impact protection
  • Good processability
  • Time saving in connector assembly
  • Potential separated shields for Ethernet
  • Universal approvals
  • Modular concept: many variants in design and application
  • Daisy Chain: Cascadeable cabling through interchangeable inserts for the M16 and M23 series
  • INOX versions available (as screw version)
One Cable Technology (OCT)

The advantages:

  • One cable instead of two or three (at least halving)
  • Reduced space requirement
  • Lower weight (especially important in energy chains)
  • Less cabling effort, fewer wiring paths
  • Reduced costs for assembly and maintenance
DC-Industry

DC-Industry is a research project of the German Electrical and Electronic Manufacturers' Association (ZVEI), which deals with DC voltage networks in industrial production. The aim is to bring more energy efficiency and energy flexibility into industrial production and thus implement the energy turnaround.

The characteristics of DC industry:

  • Direct voltage networks with central conversion
  • Energy-saving alternative for drives in production
  • Better integration of renewable energies (photovoltaics generates direct current, which must be converted before it can be fed into the grid)
  • Direct current mains with central converter replaces many decentralized frequency converters
  • Higher efficiency of direct current networks. (Conversion from DC to AC and then back on site in power supplies or frequency converters of AC and DC reduces efficiency)
