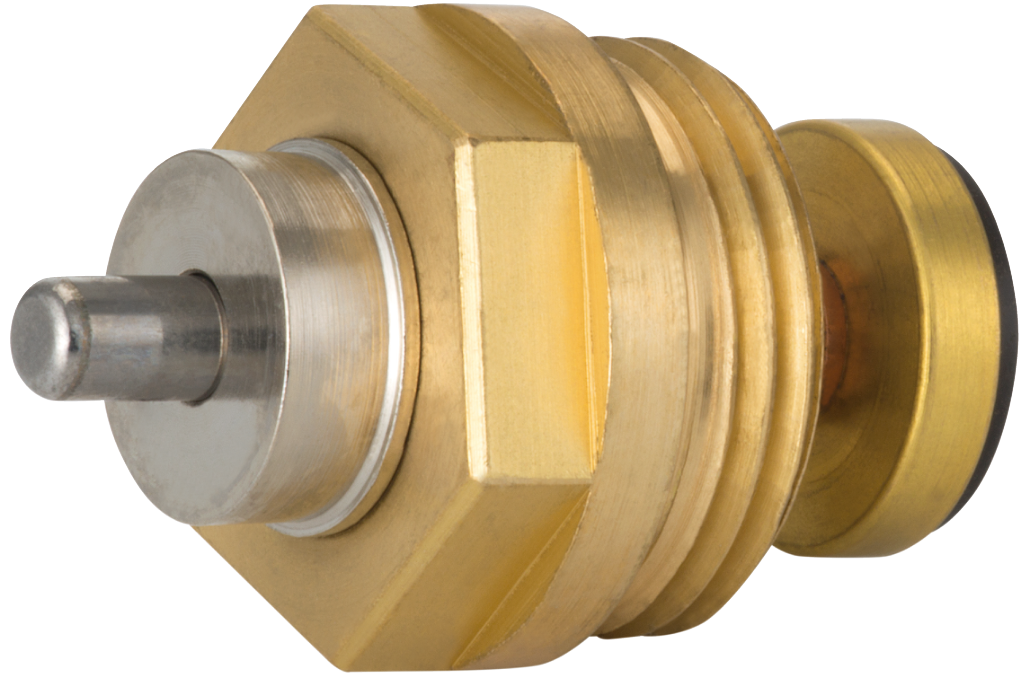

DAT1-CVS12B Spare parts
HUMMEL offers a whole range of common spare parts. These include valve cores, seals or even protection caps
|

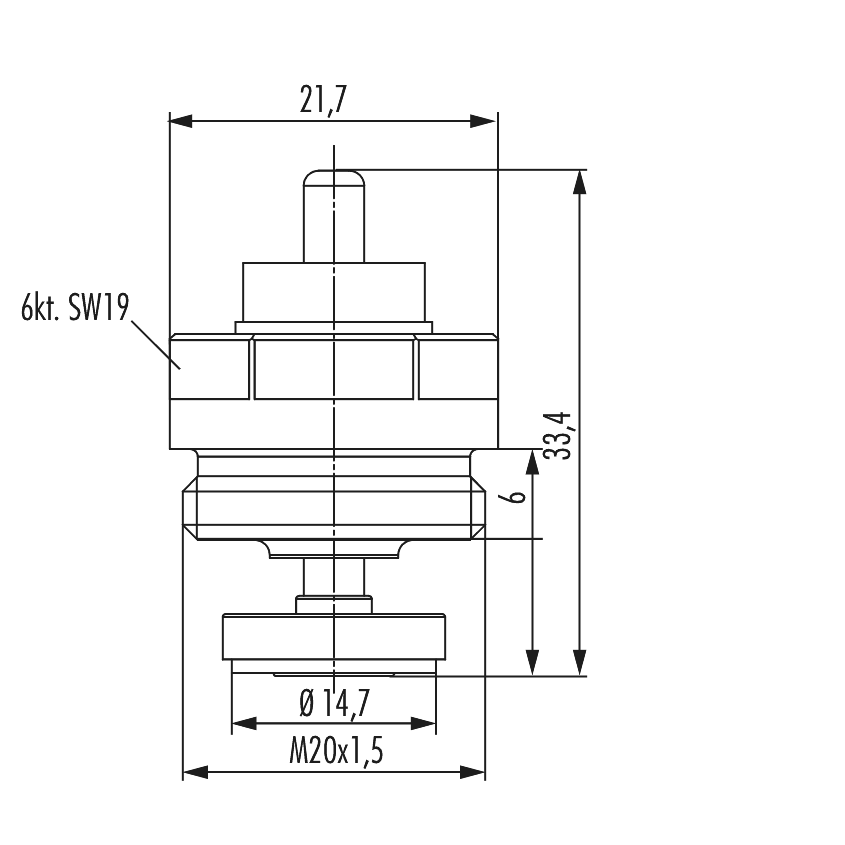

Connection size 1 (AG1)
|
M20 x 1,5
|
|
Connection type 1 (AT1)
|
External thread
|
|
Length (L)
|
21.7 mm
|
|
Width (B)
|
21.7 mm
|
|
Height (H)
|
33.4 mm
|
|
Wrench size 1 (SW1)
|
19 mm
|
|
Suitable for
|
Thermostatic valve Designtechnik flow/return reversed (until year of manufacture/catalog 2020)
|
|
Type
|
Ventileinsatz
|
|
Material
|
Brass blank
|
|
Material moulded seal
|
EPDM
|
|
Max. operating pressure
|
10 bar
|
|
Max. operating temperature heating
|
90 °C
|
