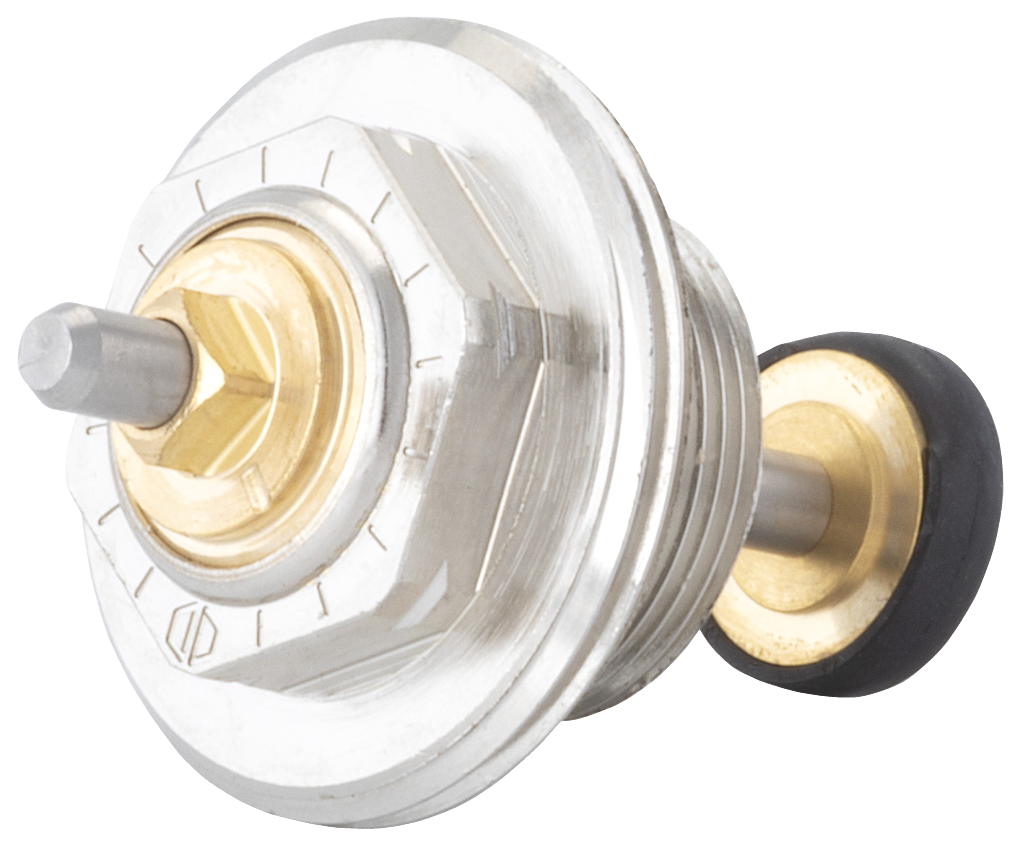

DAT1-CVS13B Spare parts
HUMMEL offers a whole range of common spare parts. These include valve cores, seals or even protection caps
|
Connection size 1 (AG1)
|
M20 x 1
|
|
Connection size 2 (AG2)
|
M30 x 1,5
|
|
Connection type 1 (AT1)
|
External thread
|
|
Connection type 2 (AT2)
|
External thread
|
|
Length (L)
|
30 mm
|
|
Width (B)
|
30 mm
|
|
Height (H)
|
44 mm
|
|
Wrench size 1 (SW1)
|
19 mm
|
|
Suitable for
|
Design fitting set 1 corner type & set 2 straight type (from year of manufacture/catalog 2021)
|
|
Type
|
Ventileinsatz
|
|
Material
|
Nickel-plated brass
|
|
Material moulded seal
|
EPDM
|
|
Max. operating pressure
|
10 bar
|
|
Max. operating temperature heating
|
90 °C
|
