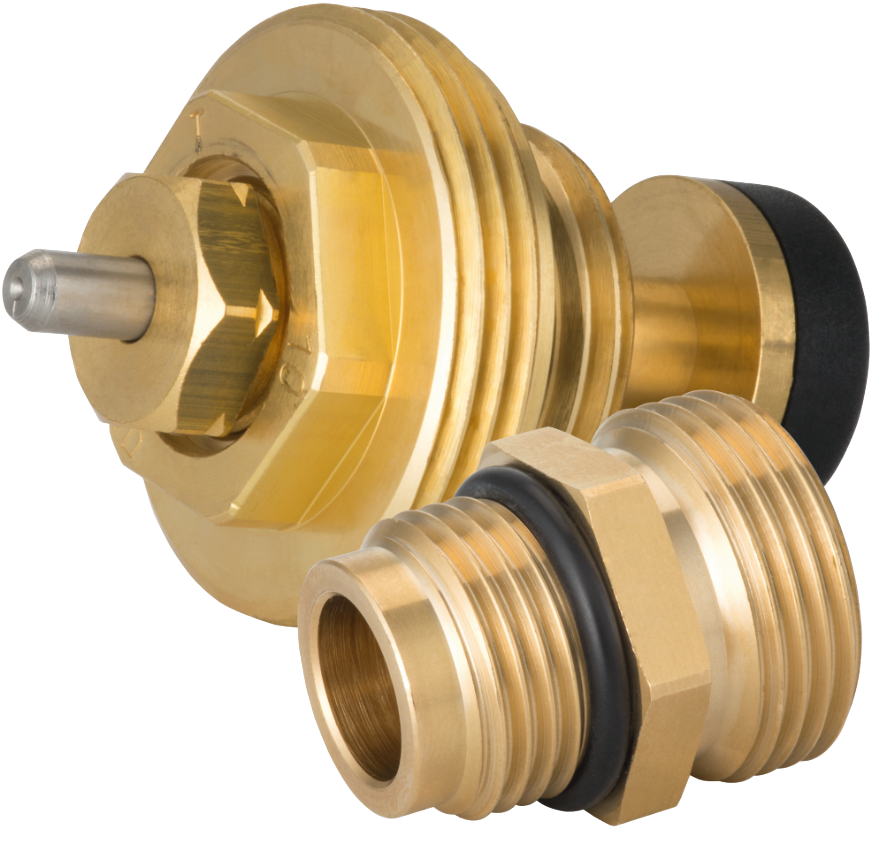

DAT1-HKV200 Spare parts
HUMMEL offers a whole range of common spare parts. These include valve cores, seals or even protection caps
|
Connection size 1 (AG1)
|
G 1/2
|
|
Connection size 2 (AG2)
|
M30 x 1,5
|
|
Connection type 1 (AT1)
|
External thread
|
|
Connection type 2 (AT2)
|
External thread
|
|
Length (L)
|
27 mm
|
|
Width (B)
|
27 mm
|
|
Height (H)
|
31.4 mm
|
|
Suitable for
|
Heating circuit distributor
|
|
Type
|
Ventileinsatz
|
|
Material
|
Brass blank
|
|
Max. operating pressure
|
6 bar
|
|
Max. operating temperature heating
|
70 °C
|
Additional information
