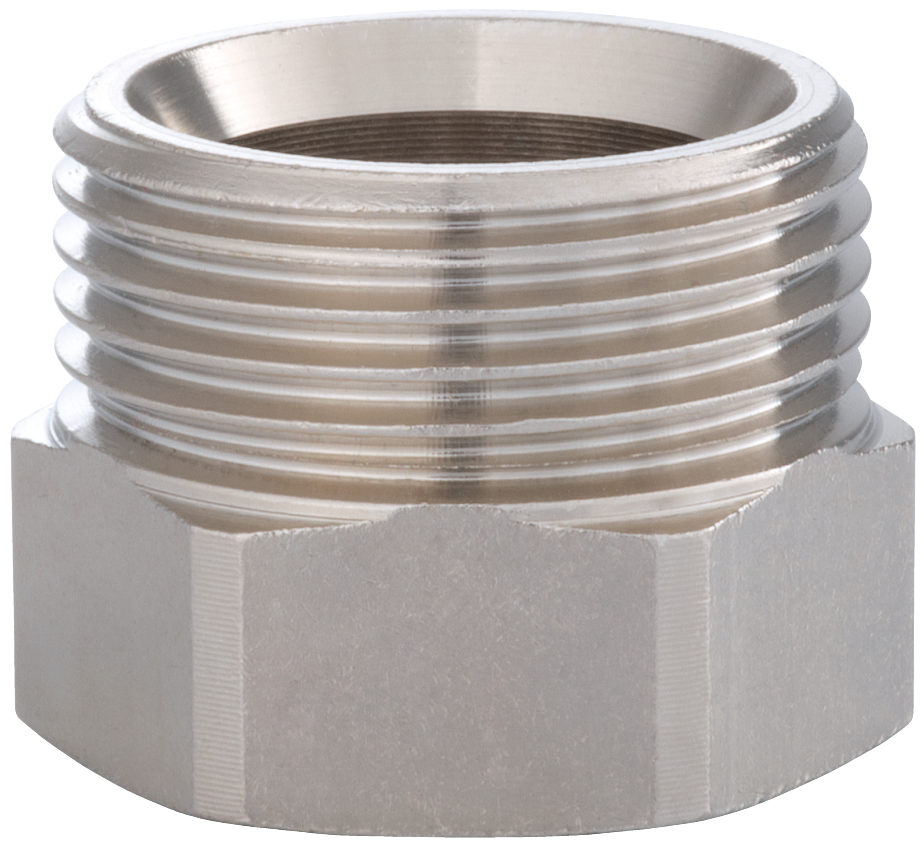

2 254 5834 01 Emergency service case
Always the suitable compression fitting
(Article number assortment case 2 810 0320 13)
|

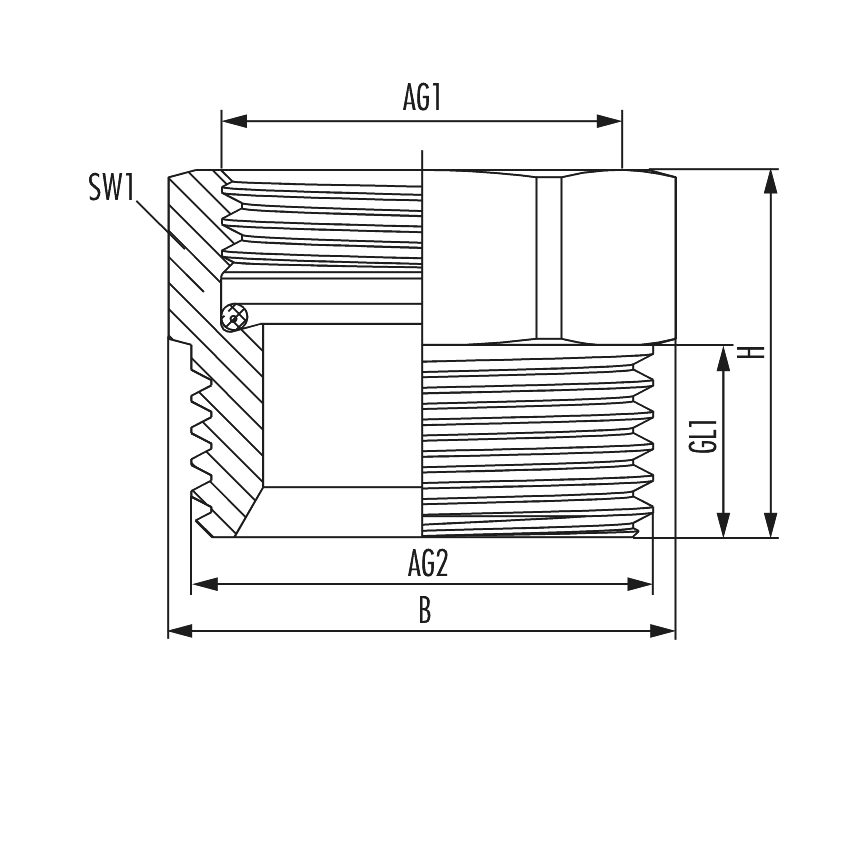

Connection size 1 (AG1)
|
G 5/8
|
|
Connection size 2 (AG2)
|
G 3/4
|
|
Connection type 1 (AT1)
|
Internal thread
|
|
Connection type 2 (AT2)
|
Euro cone
|
|
Length (L)
|
29 mm
|
|
Width (B)
|
29 mm
|
|
Height (H)
|
21 mm
|
|
Thread Length 1 (GL1)
|
11 mm
|
|
Wrench size 1 (SW1)
|
26 mm
|
|
Suitable for
|
Euro cone
|
|
Mounting form
|
Straight-type
|
|
Material
|
Nickel-plated brass
|
|
Material moulded seal
|
EPDM
|
|
Material body
|
Nickel-plated brass
|
|
Max. operating pressure
|
10 bar
|
|
Max. operating temperature heating
|
120 °C
|
- For compression fittings
- Female thread with seal
- Eurocone compatible
