2 554 1234 00 Emergency service case
Always the suitable compression fitting
(Article number assortment case 2 810 0320 13)
|

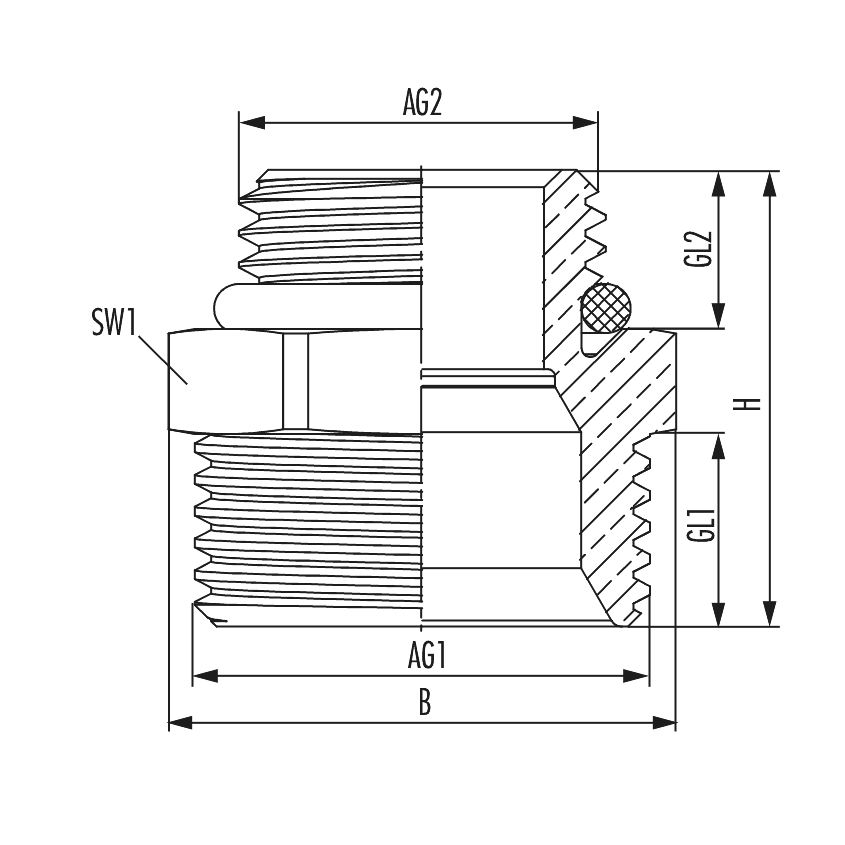

Connection size 1 (AG1)
|
G 3/4
|
|
Connection size 2 (AG2)
|
G 1/2
|
|
Connection type 1 (AT1)
|
Euro cone
|
|
Connection type 2 (AT2)
|
External thread
|
|
Length (L)
|
29 mm
|
|
Width (B)
|
29 mm
|
|
Height (H)
|
26 mm
|
|
Thread Length 1 (GL1)
|
11 mm
|
|
Thread Length 2 (GL2)
|
9 mm
|
|
Wrench size 1 (SW1)
|
26 mm
|
|
Suitable for
|
Euro cone,
HUMMEL compression fitting program (MKV/SpeedFIX) and special solutions
|
|
Mounting form
|
Straight-type
|
|
Material
|
Brass blank
|
|
Material moulded seal
|
EPDM
|
|
Material body
|
Brass blank
|
|
Max. operating pressure
|
10 bar
|
|
Max. operating temperature heating
|
120 °C
|
|
Max. operating temperature drinking water
|
95 °C
|
|
Compliance
|
UBA
|
|
Registration number ÜA
|
R-15.2.3-21-17214
|
- For compression fittings
- For manifolds and fittings
- O-ring sealing
- Flush-mounted use according to DIN
- Eurocone compatible
