| Connection size 1 (AG1) | G 3/4 |
| Connection size 2 (AG2) | G 3/4 |
| Connection size 3 (AG3) | G 3/4 |
| Connection type 1 (AT1) | Euro cone |
| Connection type 2 (AT2) | Euro cone |
| Connection type 3 (AT3) | Euro cone |
| Length (L) | 54 mm |
| Width (B) | 26 mm |
| Height (H) | 40 mm |
| Thread Length 1 (GL1) | 9 mm |
| Thread Length 2 (GL2) | 9 mm |
| Wrench size 1 (SW1) | 22 mm |

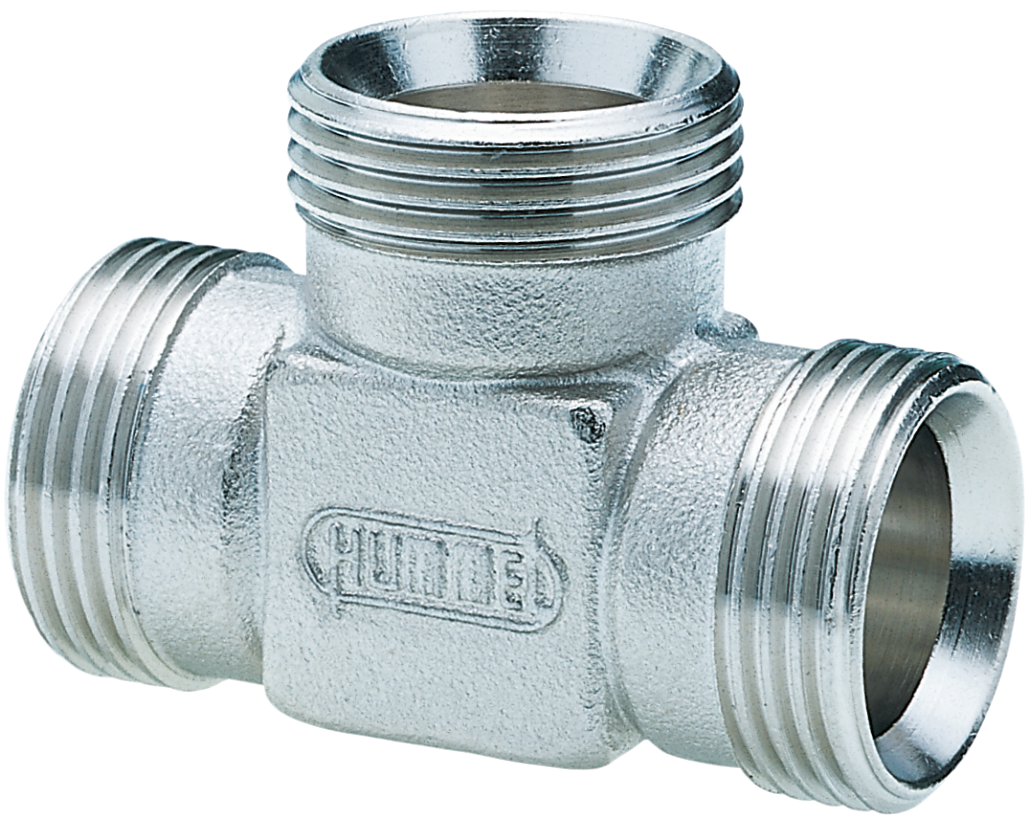

| Mounting form | T-piece |
| Kvs-value | 5.14 |
| Material | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Max. operating temperature heating | 120 °C |
