2 855 0015 02 Compression fittings SpeedFIX
Compression fitting for copper, precision steel and stainless steel tubes
|
Connection size 1 (AG1)
|
G 3/4
|
|
Connection size 2 (AG2)
|
15 mm
|
|
Connection type 1 (AT1)
|
Euro cone
|
|
Length (L)
|
33.2 mm
|
|
Width (B)
|
33.2 mm
|
|
Height (H)
|
20.5 mm
|
|
Wrench size 1 (SW1)
|
30 mm
|
|
Suitable for
|
Copper, precision steel or stainless steel tubes with a wall thickness ≥ 1mm according to DIN EN 1057, DIN EN 10305-2 and DIN EN 10312,
Euro cone
|
|
Clamping range
|
15 mm
|
|
Colour
|
chrome
|
|
Material
|
Coated brass
|
|
Material moulded seal
|
EPDM
|
|
Material clamping ring
|
Brass blank
|
|
Material union nut
|
Coated brass
|
|
Max. operating pressure
|
10 bar
|
|
Max. operating temperature heating
|
120 °C
|
|
Max. operating temperature drinking water
|
95 °C
|
|
Compliance
|
UBA
|
|
Registration number ÜA
|
R-15.2.3-21-17214
|
|
DIN
|
EN ISO 228-1
|

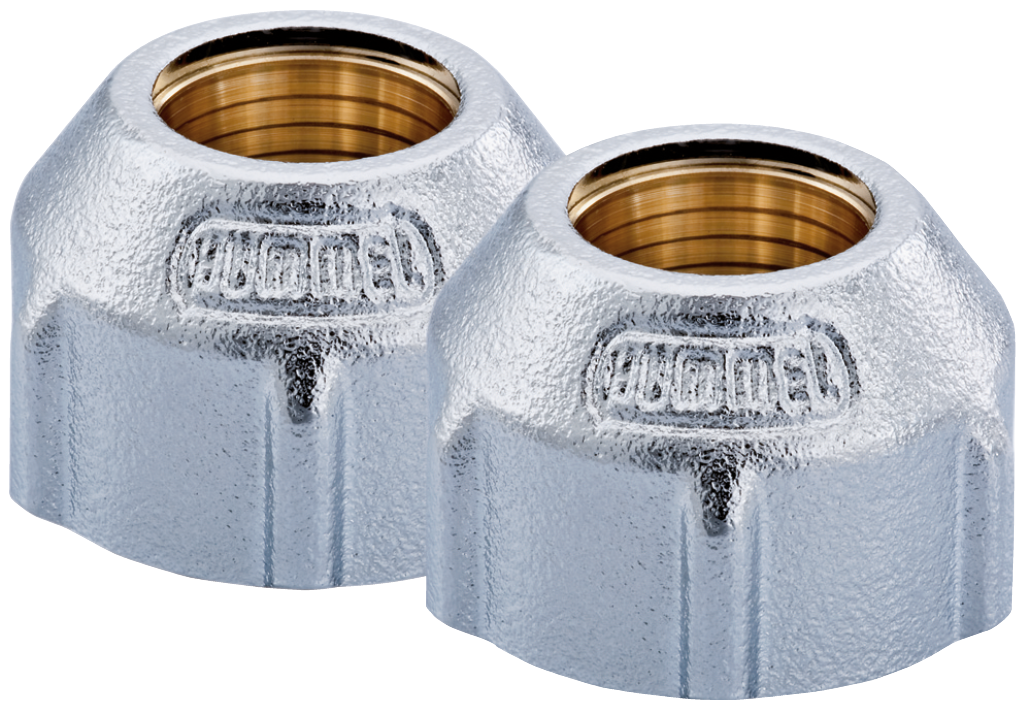

- Set consists of 2 compression fittings
- Preassembled and fixed
- Clamping range 15mm
- For copper, precision steel or (stainless) steel pipes with a wall thickness ≥1mm (according to DIN EN 1057, DIN EN 10305-2 and DIN EN 10312)
- Low tightening torque (easy mobility)
- Suitable for district heating
- EPDM sealing element
- Eurocone compatible
