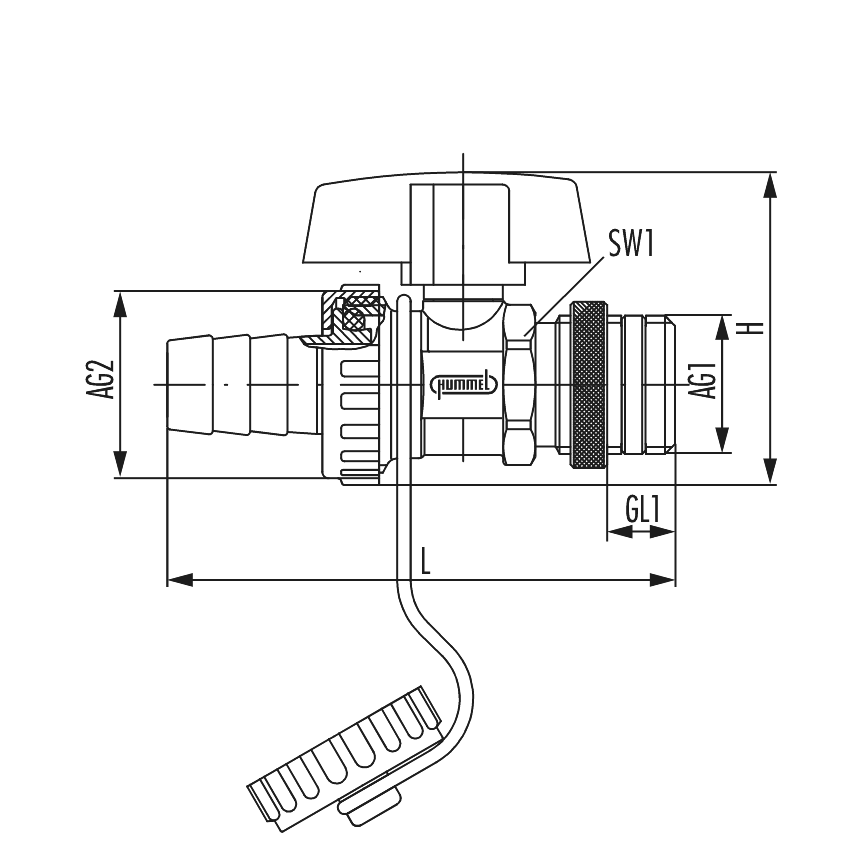

| Connection size 1 (AG1) | G 1/2 |
| Connection type 1 (AT1) | External thread |
| Length (L) | 76 mm |
| Width (B) | 30 mm |
| Height (H) | 46.8 mm |
| Thread Length 1 (GL1) | 15 mm |
| Wrench size 1 (SW1) | 21.5 mm |
| Suitable for | Heating |
| Material | Nickel-plated brass |
| Material Handles | Zinc Die Cast |
| Material moulded seal | EPDM / PTFFE / Teflon |
| Material retaining strap | PE |
| Max. operating pressure | 10 bar |
| Max. operating temperature heating | 90 °C |
