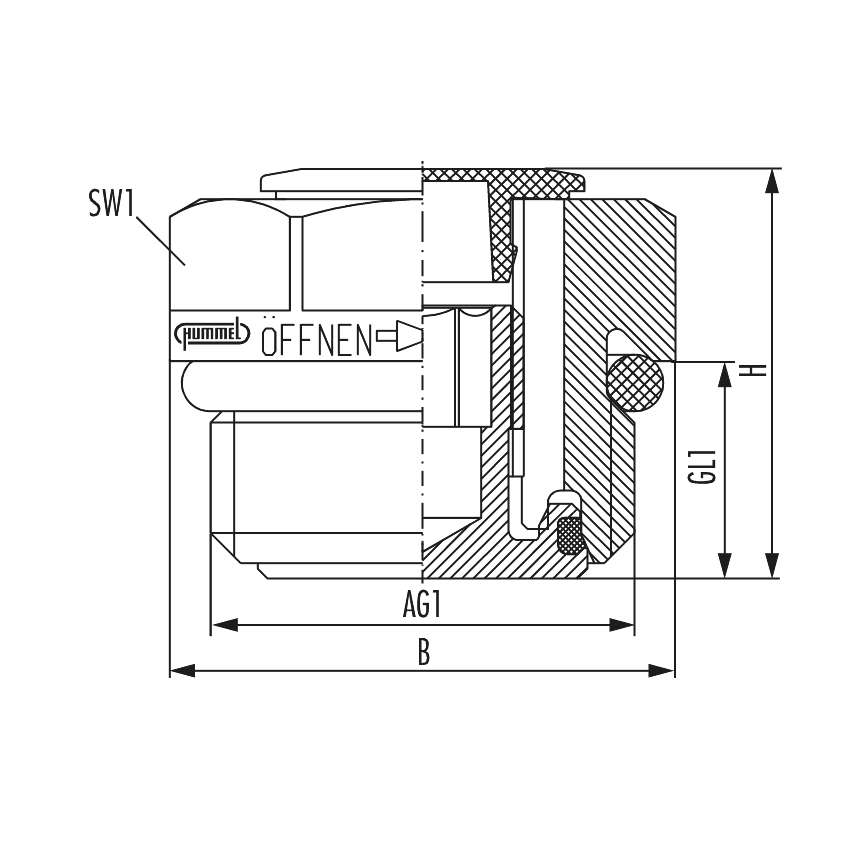

| Connection size 1 (AG1) | G 1/2 |
| Connection type 1 (AT1) | External thread |
| Length (L) | 25 mm |
| Width (B) | 25 mm |
| Height (H) | 20 mm |
| Thread Length 1 (GL1) | 10 mm |
| Wrench size 1 (SW1) | 22 mm |
| Material | Nickel-plated brass |
| Material moulded seal | EPDM |
| Material protective cap | Polyamide |
| Max. operating pressure | 10 bar |
| Max. operating temperature heating | 90 °C |
