| Connection size 1 (AG1) | G 3/4 |
| Connection size 2 (AG2) | G 1/4 |
| Connection type 1 (AT1) | Euro cone |
| Connection type 2 (AT2) | Venting |
| Suitable for | Euro cone |

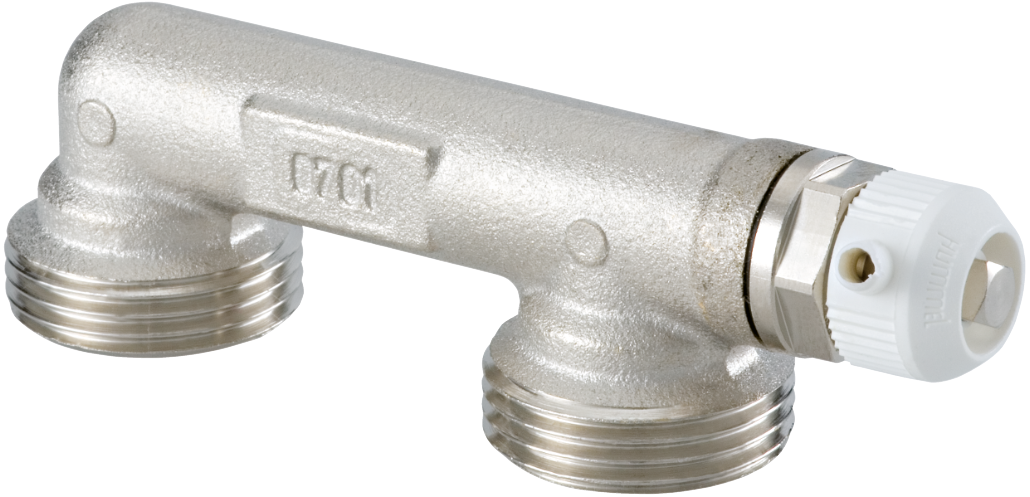

| Mounting form | Mounting bridge |
| Axial dimension (AM) | 50 mm |
| Thread Length 1 (GL1) | 8.4 mm |
| Wrench size 1 (SW1) | 15 mm |
| Length (L) | 96.4 mm |
| Width (B) | 26.2 mm |
| Height (H) | 28.5 mm |
| Material moulded seal | EPDM |
| Material plastic cap | PA |
| Material | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Max. operating temperature heating | 120 °C |
