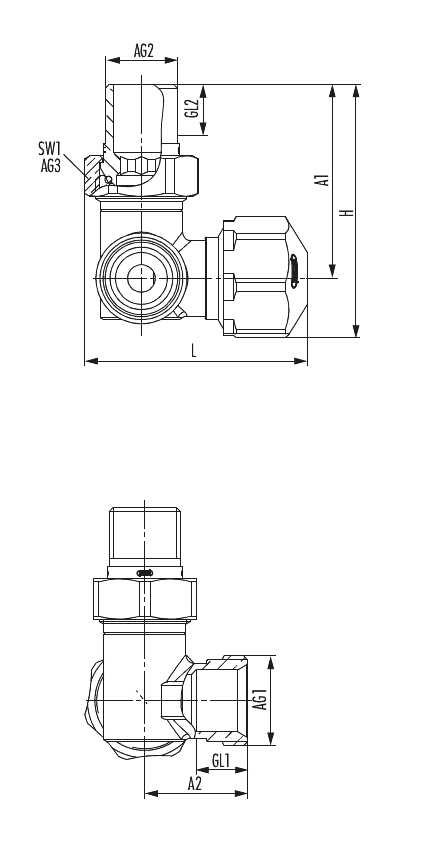

| Connection size 1 (AG1) | G 3/4 |
| Connection size 2 (AG2) | G 1/2 |
| Connection size 3 (AG3) | G 3/4 |
| Connection type 1 (AT1) | Euro cone |
| Connection type 2 (AT2) | External thread |
| A1 | 56.7 mm |
| Length (L) | 53.5 mm |
| Width (B) | 46.5 mm |
| Height (H) | 73.2 mm |
| Thread Length 1 (GL1) | 7.5 mm |
| Thread Length 2 (GL2) | 15 mm |
| Wrench size 1 (SW1) | 30 mm |
| Suitable for |
Euro cone, Thermostatic heads with connection thread M30 x 1.5 |
| Mounting form |
Angle-corner-type, Right connection |
| Pipe system | Two pipe system |
| Kvs-value | 1.1 |
| Material | Nickel-plated brass |
| Material moulded seal | EPDM |
| Material union nut | Nickel-plated brass |
| Material body/union nut | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Max. operating temperature heating | 90 °C |
| Thermostat connection | M30 x 1.5 |
