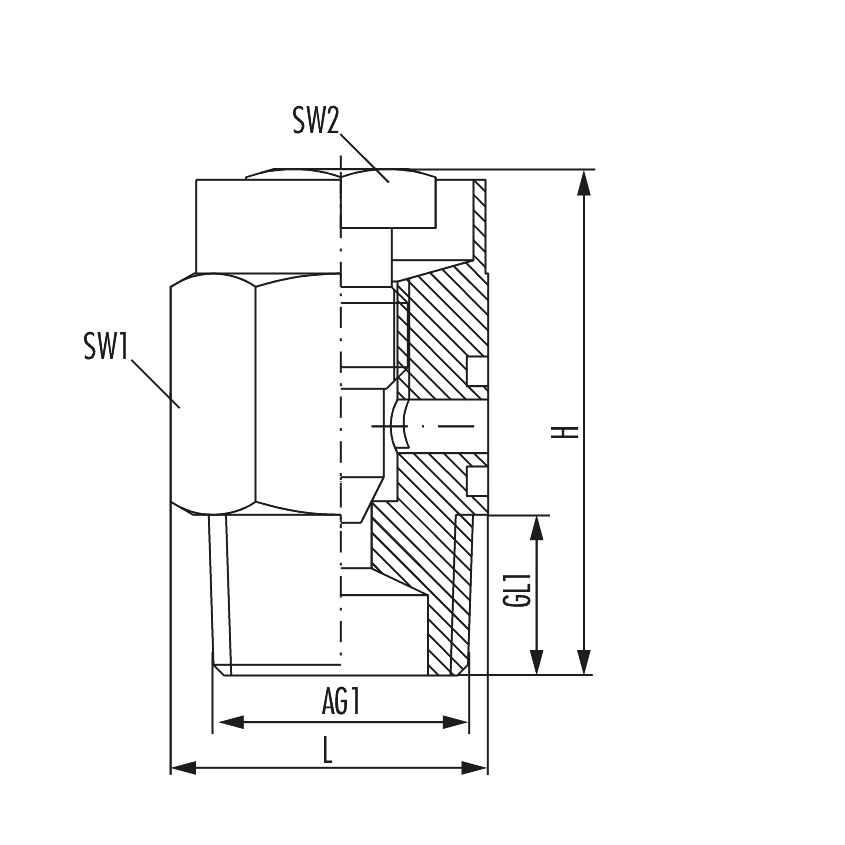

| Connection size 1 (AG1) | R 1/8 |
| Connection type 1 (AT1) | External thread |
| Connection type 2 (AT2) | Venting |
| Length (L) | 12.7 mm |
| Width (B) | 12.7 mm |
| Height (H) | 18.9 mm |
| Thread Length 1 (GL1) | 6 mm |
| Wrench size 1 (SW1) | 11 mm |
| Wrench size 2 (SW2) | 5 mm |
| Operation | Key operation |
| Material | Nickel-plated brass |
| Material body/spindle | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Max. operating temperature heating | 130 °C |
