| Housing type | Panel angled |
| Material housing | Zinc Die Cast |
| Material housing surface | blue passivated |
| Version |
TWILOCK-S, right angled |
| External thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals/o-rings | FKM (FPM) |
| Rotatable | 330 ° |

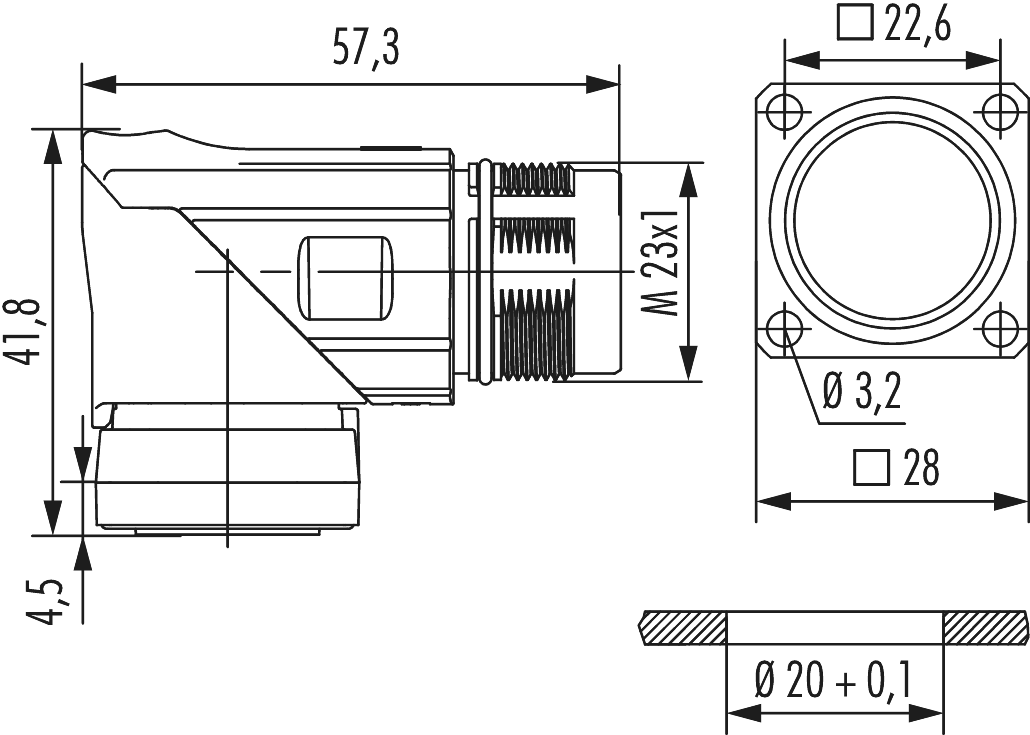

| Panel hole | Ø 20 + 0,1 mm |
| Flange | 28 x 28 mm |
| Hole distance | 22.6 mm |
| Hole diameter | 4 x Ø 3,2 mm |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
| suitable contact inserts |
7084909101, 7084910101, 7084943121, 7084951121, 7084953101 |
