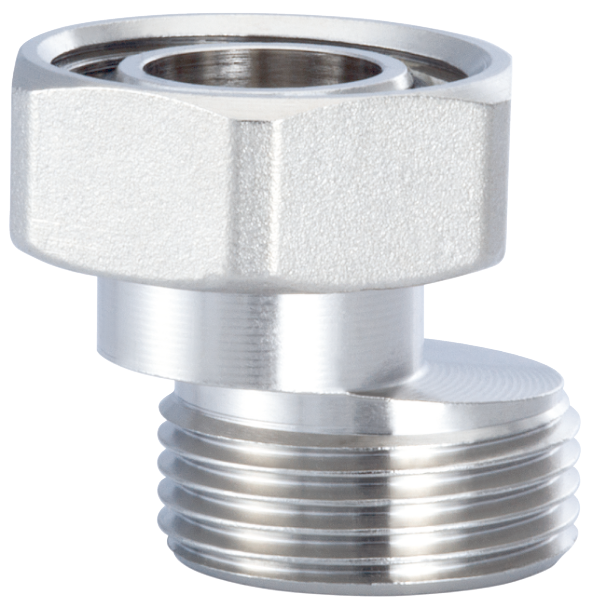

| Material | Nickel-plated brass |
| Material moulded seal | EPDM |
| Max. operating pressure | 10 bar |
| Max. operating temperature heating | 120 °C |

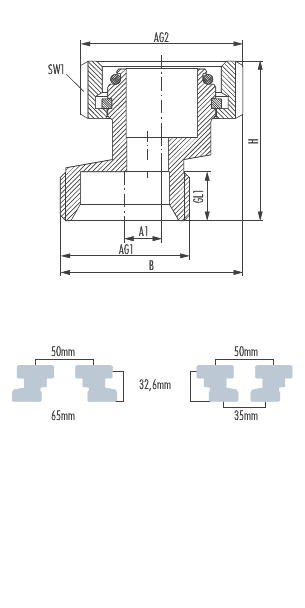

Connection size 1 (AG1) AG1 | Connection size 2 (AG2) AG2 | A1 (mm) A1 (mm) | Width (B) (mm) B (mm) | Height (H) (mm) H (mm) | Thread Length 1 (GL1) (mm) GL1 (mm) | Wrench size 1 (SW1) (mm) SW1 (mm) | Item-No |
|---|---|---|---|---|---|---|---|
| Zurücksetzen | |||||||
| G 1/2 | G 3/4 | 7.5 | 33.5 | 32.6 | 12 | 30 | 2 556 3412 01 |
| M22 x 1,5 | G 3/4 | 7.5 | 33.5 | 32.6 | 10 | 30 | 2 556 3422 01 |
| G 3/4 | G 3/4 | 7.5 | 34 | 32.6 | 10 | 30 | 2 556 3434 01 |
