| Material | Polyamide, fiber reinforced |
| Material o-ring | NBR |
| Protection class |
IP68 - 10bar/30min, IP 69 K |
| Temperature range | -20°C to +80°C |
| Tightening torque | 6.5 Nm |
| Colour | black |
| RAL | 9005 |

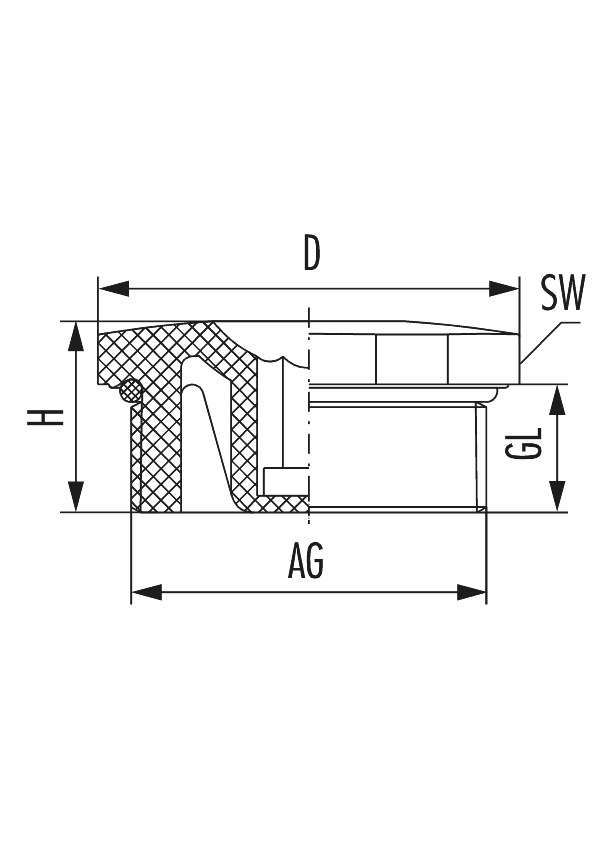

| Variant | PG |
| External thread (AG) | PG 29 |
| Thread length (GL) | 11.5 mm |
| Height (H) | 18 mm |
| D | 48 mm |
| Wrench size (SW) | 46 mm |
| Allen key | 8 |
| Product group | Accesories |
