| Material | Nickel-plated brass |
| Material o-ring | FKM |
| Protection class |
IP68 - 10bar/30min, IP 69 K |
| Ex-protection level |
II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb |
| Temperature range | -20°C to +180°C |
| Tightening torque | 15 Nm |
| Variant | Metric |

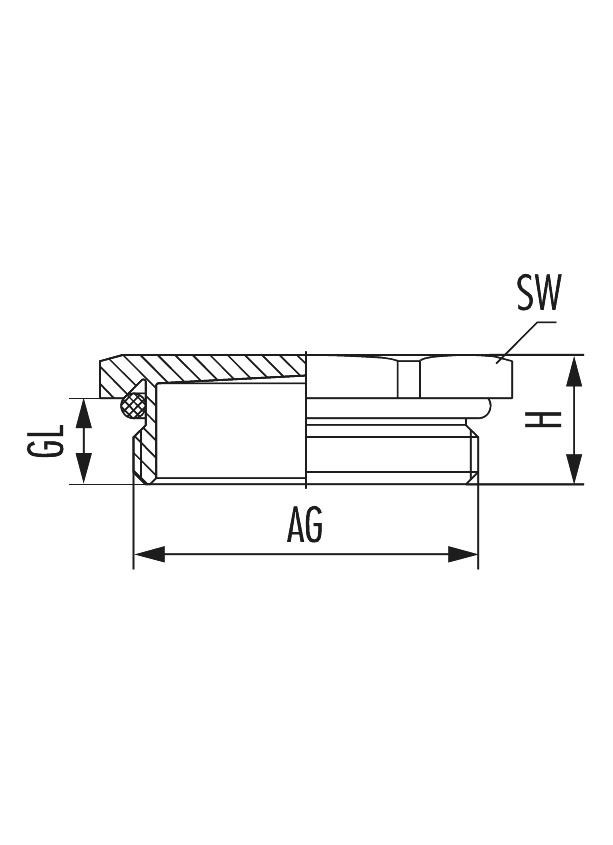

| External thread (AG) | M32 x 1,5 |
| Thread length (GL) | 8 mm |
| Height (H) | 12.5 mm |
| Wrench size (SW) | 41 mm |
| Product group | Accesories |
