| Material | Polyamide |
| Protection class |
IP 54, IP 65 in case of fixed mounting and o-ring on the connection thread |
| Temperature range | -20°C to +80°C |
| Colour | black |
| RAL | 9005 |
| Variant | NPT |

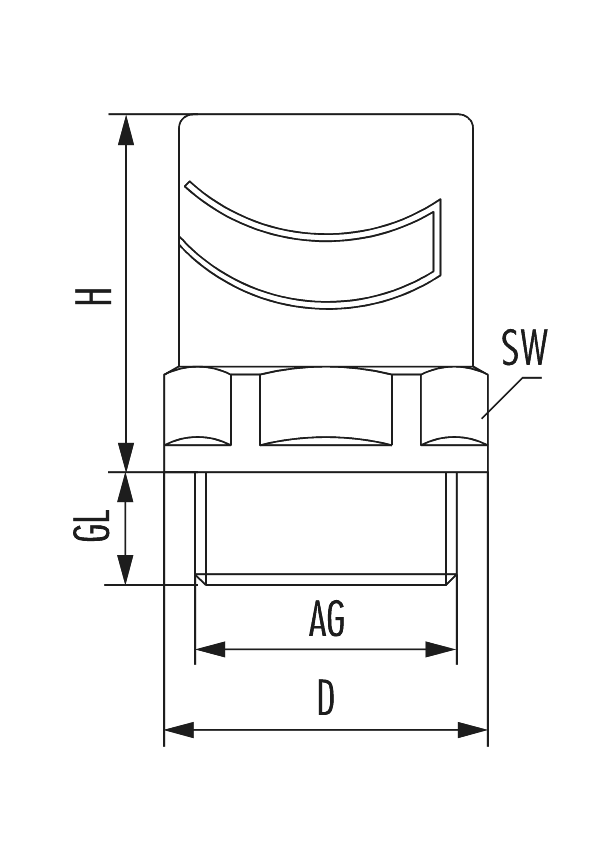

| External thread (AG) | NPT 1/2" |
| D | 30 mm |
| Thread length (GL) | 13 mm |
| Height (H) | 29 mm |
| Wrench size (SW) | 27 mm |
| Suitable for polyamide hose DN | 17 |
