| Material | Polyamide |
| Protection class | IP 55 |
| Temperature range | -30°C to +80°C |
| Colour | black |
| RAL | 9005 |

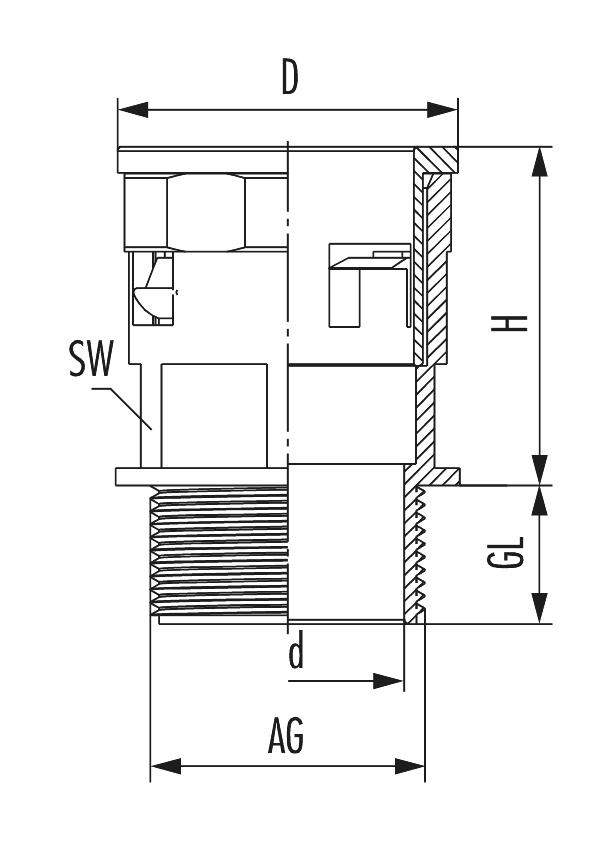

| Variant | Metric |
| External thread (AG) | M32 |
| d | 25.7 mm |
| D | 46.5 mm |
| Thread length (GL) | 16 mm |
| Height (H) | 43 mm |
| Wrench size (SW) | 40 mm |
| Suitable for polyamide hose DN | 29 |
