| Characteristic of connection | Crimp |
| Insert | Socket |

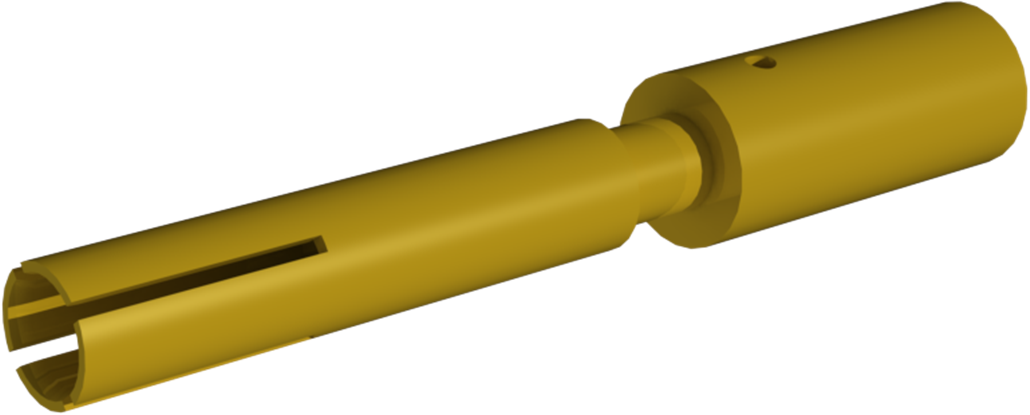

| Crimp contact | Crimp socket power 1,5 mm machined |
| Material contact | Copper alloy |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact-Ø power | 1.5 mm |
| Length (L) | 17.9 mm |
| Crimp range | 2.5 – 2.5 mm² |
