| Characteristic of connection | Crimp |
| Insert | Socket |
| Crimp contact | Crimp socket signal 1 mm machined |
| Material contact | Copper-zinc alloy |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact-Ø signal | 1 mm |

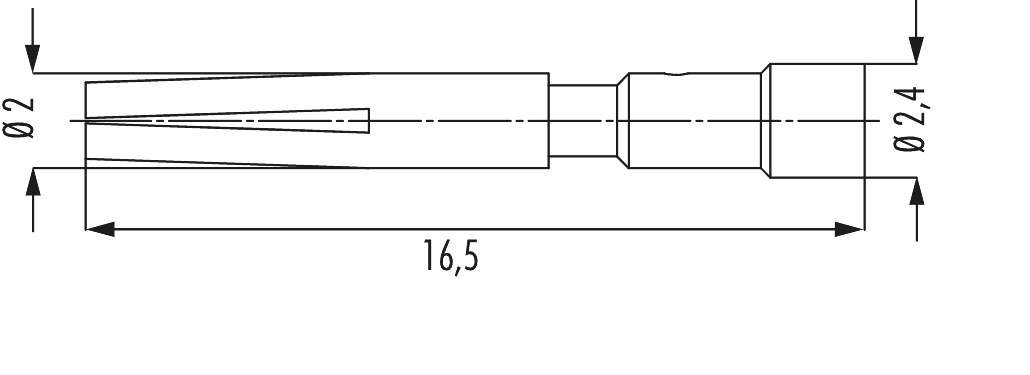

| Length (L) | 16.5 mm |
| Crimp range | 0.75 – 1.5 mm² |
| Suitable crimping tool | 7000900904 |
