| Characteristic of connection | Crimp |
| Insert | Socket |
| Crimp contact | Crimp socket power 1 mm machined |
| Material contact | Copper-zinc alloy |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact-Ø power | 1 mm |

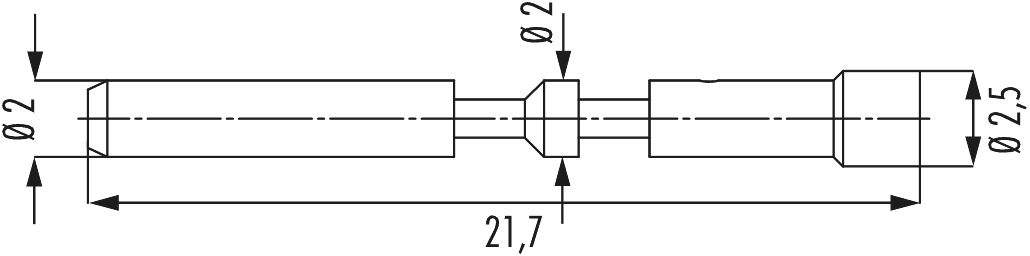

| Length (L) | 21.7 mm |
| Crimp range | 0.14 – 1 mm² |
| Suitable crimping tool | 7000900901 |
