| Housing type | Cable |
| Material housing | Stainless steel 1.4404 (AISI 316) |
| Version | Screw |
| Internal thread plug-in side | M23 x 1 |
| Knurled nut-Ø plug-in side | 26 mm |
| Locking type | Screw |
| Shield | shielded |
| Seal type | O-Ring |
| Material seals/o-rings | FKM (FPM) |
| Wrench size (SW1/SW2) | 24/27 mm |
| Cable diameter | 7 – 12 mm |

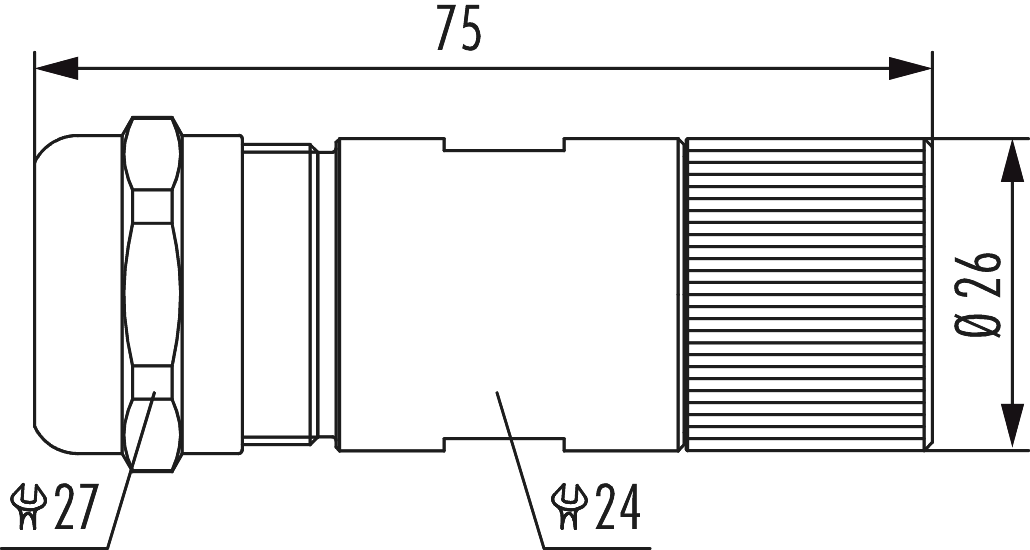

| Length (L) | 75 mm |
| Temperature range | -40°C to +125°C |
| Protection class | IP 67 |
| suitable contact inserts |
7084954101, 7084954102 |
