| Characteristic of connection | Crimp |
| Number of poles | 14 |

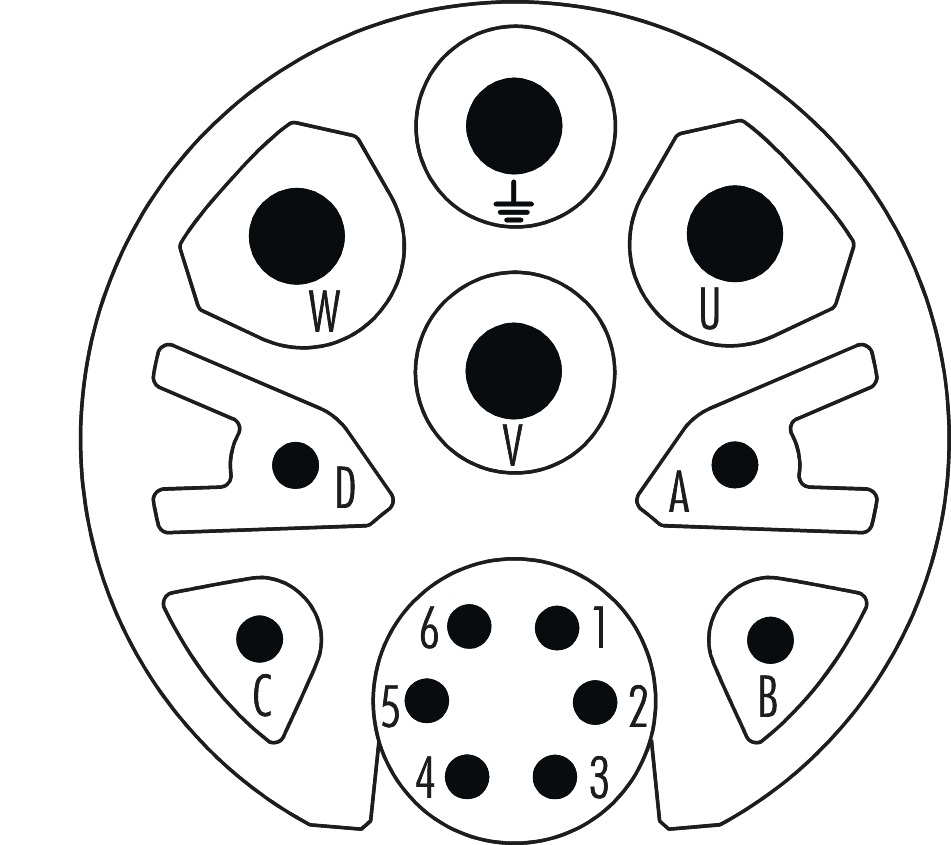

| Pole picture | 6 + 4 + 3 + PE |
| Coding | PE |
| Insert | Pin |
| Color Ethernet insert | white |
| Color contact insert | blue |
| Material Ethernet insert | PBT |
| Number of contacts data | 6 |
| Number of contacts signal | 4 |
| Number of contacts power | 3 |
| Number of contacts PE | 1 |
| Contact-Ø data | 0.6 mm |
| Contact-Ø signal | 1 mm |
| Contact-Ø power | 2 mm |
| Nominal current data | 1,2 A |
| Nominal current signal | 8 A |
| Nominal current power | 28 A |
| Nominal voltage at degree of pollution 3 data | 30 V~ |
| Nominal voltage at degree of pollution 3 signal | 300 V~ |
| Nominal voltage at degree of pollution 3 power | 600 V~ |
| Test voltage power | 4000 V~ |
| Insulation resistance signal | > 10^8 Ω |
| Insulation resistance power | 10^8 Ω |
| max. contact resistance data | 3 mOhm |
| max. contact resistance signal | 3 mOhm |
| max. contact resistance power | 3 mOhm |
| Temperature range | -40°C to +125°C |
| Degree of Protection | 3 |
| Suitable data contacts | 7010960611 |
| Suitable Signal contacts |
7010941001, 7010941021 |
| Suitable power contacts |
7010942001, 7010942011 |
| Suitable PE-/FE-contacts |
7010942001, 7010942011 |
