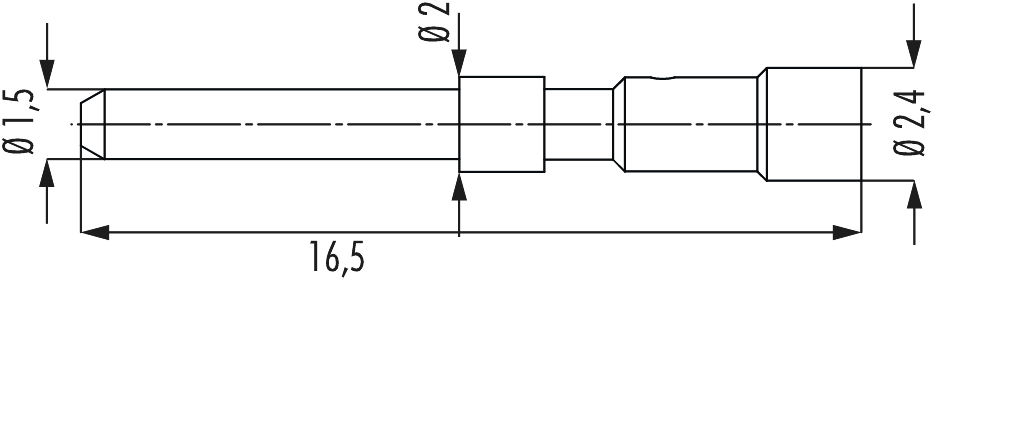

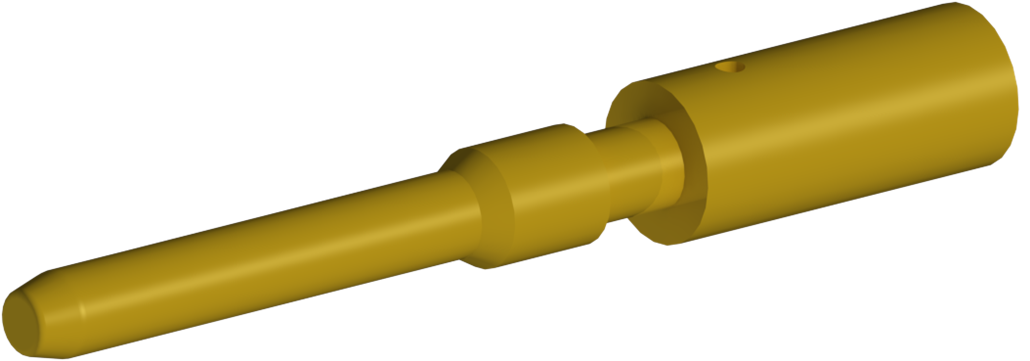

A712-7010901521 M12 Power contacts

Characteristic of connection Crimp
Insert Pin
Crimp contact Crimp pin power 1,5 mm machined
Material contact Copper alloy
Material contact surface nickel, gold plated (0.25 µm)
Contact-Ø power 1.5 mm
Length (L) 16.5 mm
Crimp range 0.75 – 0.75 mm²
Request 3D data
Data sheet
