| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Coding |
K, L |
| Installation type | Front wall |
| External thread (AG) | M16 x 1,5 |
| Internal thread plug-in side | M12 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | Seal |
| Material seals/o-rings | FKM (FPM) |

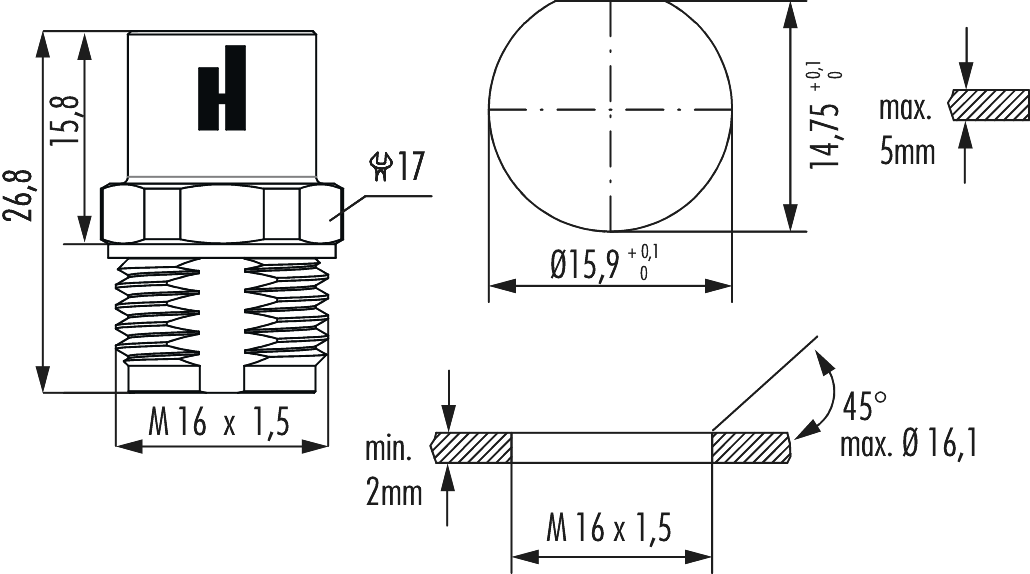

| Panel hole | M16 x 1,5 mm |
| Wall thickness | min. 2 mm |
| Chamfer | 45° oriented upwards |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
| suitable contact inserts |
A712-7K03941102, A712-7L03941102 |
