| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Coding |
K, L |
| Installation type | Front wall |
| External thread (AG) | M20 x 1,5 |
| Internal thread plug-in side | M12 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | Seal |
| Material seals/o-rings | FKM (FPM) |

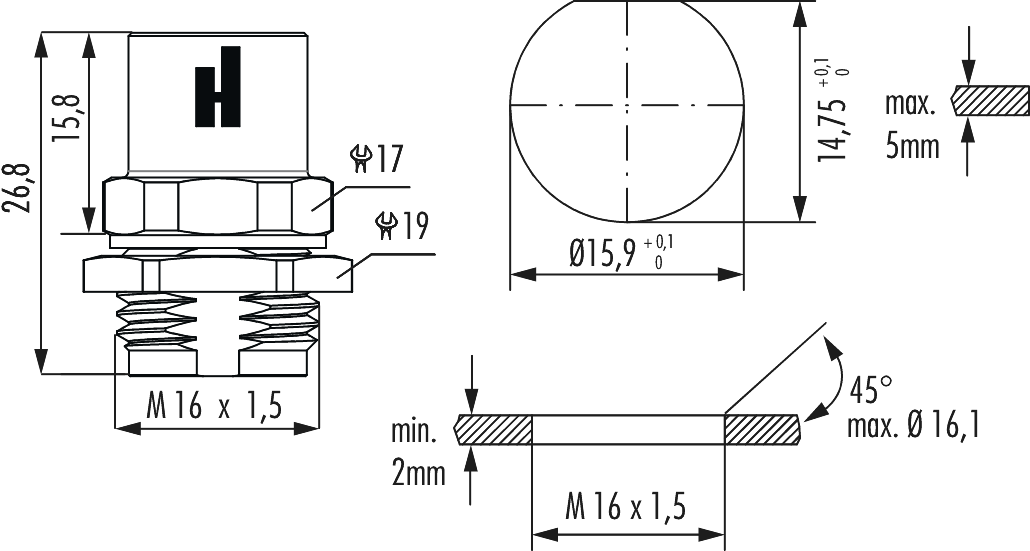

| Drill form |
D 14,75 + 0,1, D Ø 15,9 + 0,1 mm |
| Wall thickness | max. 5 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
| suitable contact inserts |
A712-7K03941102, A712-7L03941102 |
