| Characteristic of connection | Screw terminal |
| Number of poles | 4 |

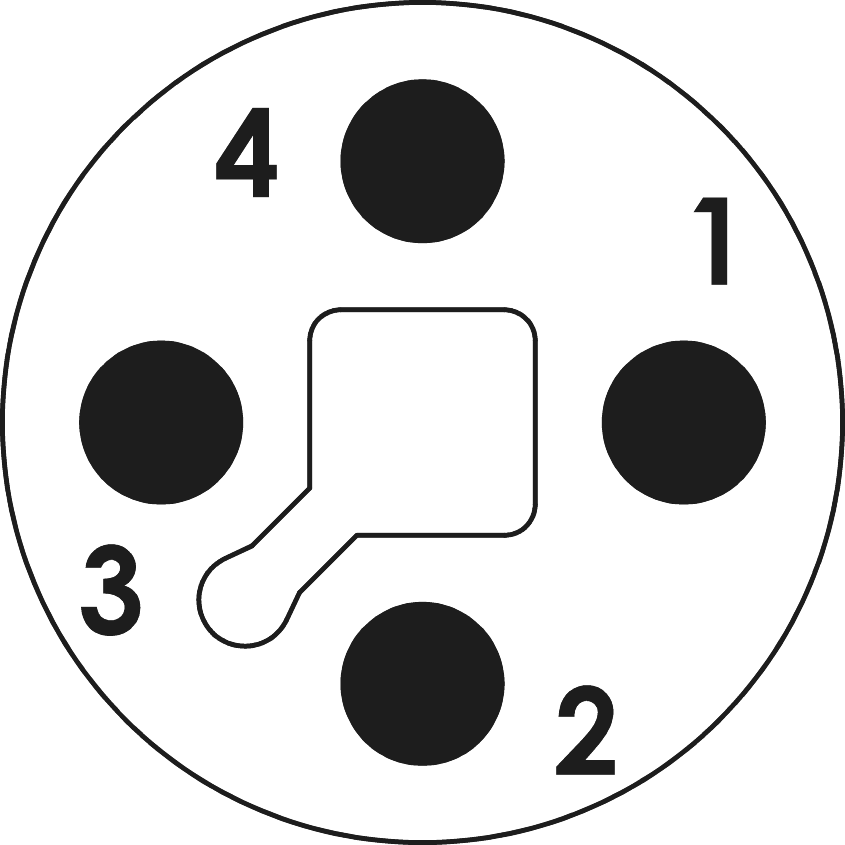

| Pole picture | 4 |
| Coding | T |
| Insert | Socket |
| Color contact insert | dark grey |
| Material insulating body | PBT |
| Number of contacts power | 4 |
| Contact-Ø power | 1.5 mm |
| Nominal current power | 12 A |
| Nominal voltage at degree of pollution 3 power | 63 V~ |
| Test voltage power | 840 V~ |
| Insulation resistance power | 10^8 Ω |
| max. contact resistance power | 3 mOhm |
| Temperature range | -40°C to +125°C |
| Degree of Protection | 3 |
| Flammability | V-0 (UL 94) |
