| Material housing |
Aluminium alloy, Copper-Zinc alloy, Zinc Die Cast |
| Material housing surface | Nickel |
| Installation type | Front wall |
| Version | short version |
| External thread plug-in side | M16 x 0,75 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals/o-rings |
FKM (FPM), NBR |

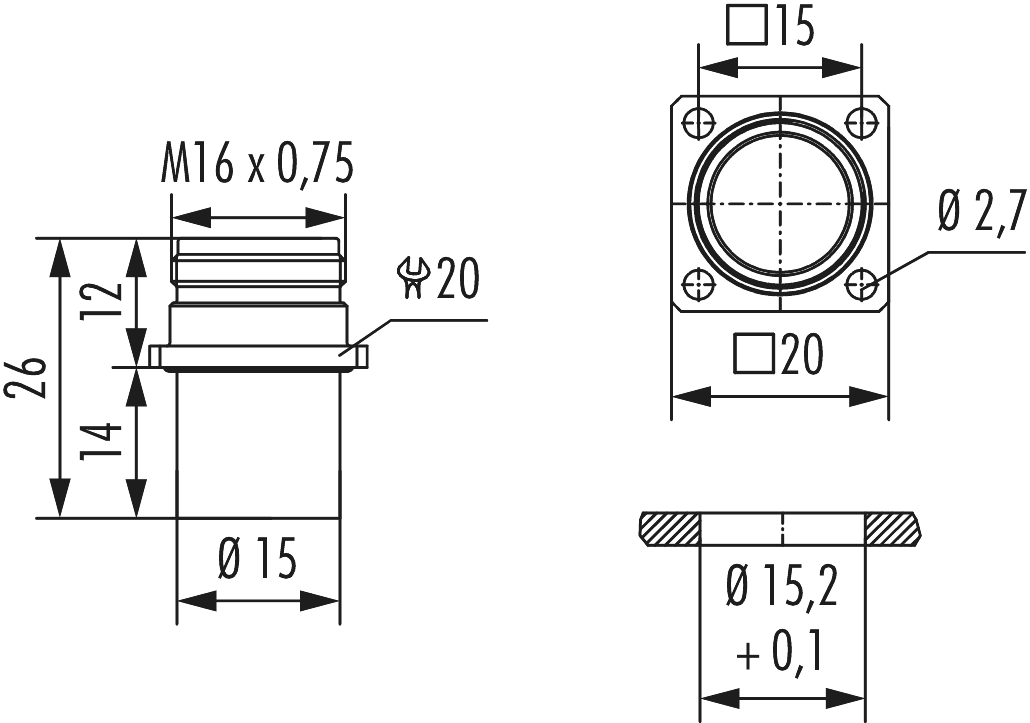

| Panel hole | Ø 15,2 + 0,1 mm |
| Flange | 20 x 20 mm |
| Hole distance | 15 mm |
| Hole diameter | 4 x Ø 2,7 mm |
| Length (L) | 26 mm |
| Wrench size (SW) | 20 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
