| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Installation type |
Front wall, Rear wall |
| Internal thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | shielded |
| Material seals/o-rings | NBR |

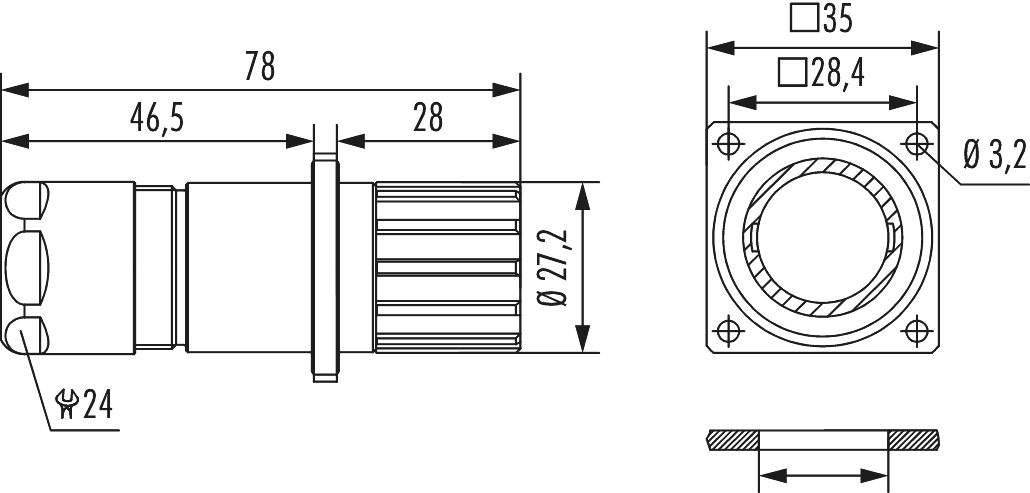

| Panel hole | mind. Ø 27,2 + 0,2 mm |
| Flange | 35 x 35 mm |
| Hole distance | 28.4 mm |
| Hole diameter | 4 x Ø 3,2 mm |
| Wrench size (SW) | 24 mm |
| Cable diameter | 11 – 17 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
| suitable contact inserts |
7084909101, 7084909102, 7084910101, 7084910102, 7084943121, 7084943122, 7084944101, 7084944102, 7084951121, 7084951122, 7084953101, 7084953102 |
