| Material housing | Stainless steel 1.4404 (AISI 316) |
| Insert | |
| Installation type | Rear wall |
| Version |
Screw, right angled |
| Locking type | Screw |
| Shield | unshielded |
| Material seals/o-rings | FKM (FPM) |

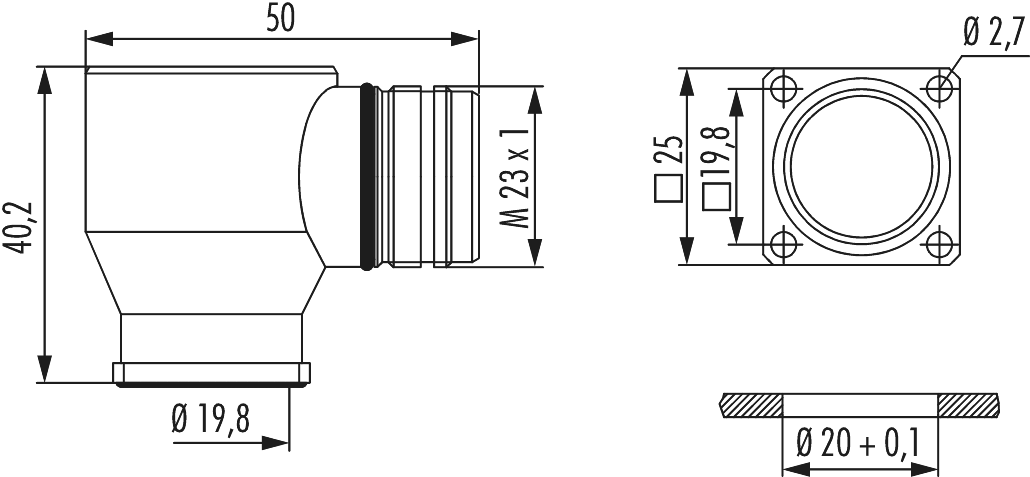

| Flange | 25 x 25 mm |
| Hole distance | 19.8 mm |
| Hole diameter | 4 x Ø 2,7 mm |
| Temperature range | -40°C to +125°C |
| Protection class | IP 67 |
