| Housing type | Panel angled |
| Material housing | Zinc Die Cast |
| Material housing surface | Nickel |
| Version | right angled |
| External thread plug-in side | M23 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals/o-rings |
FKM (FPM), NBR |
| Rotatable | 335 ° |

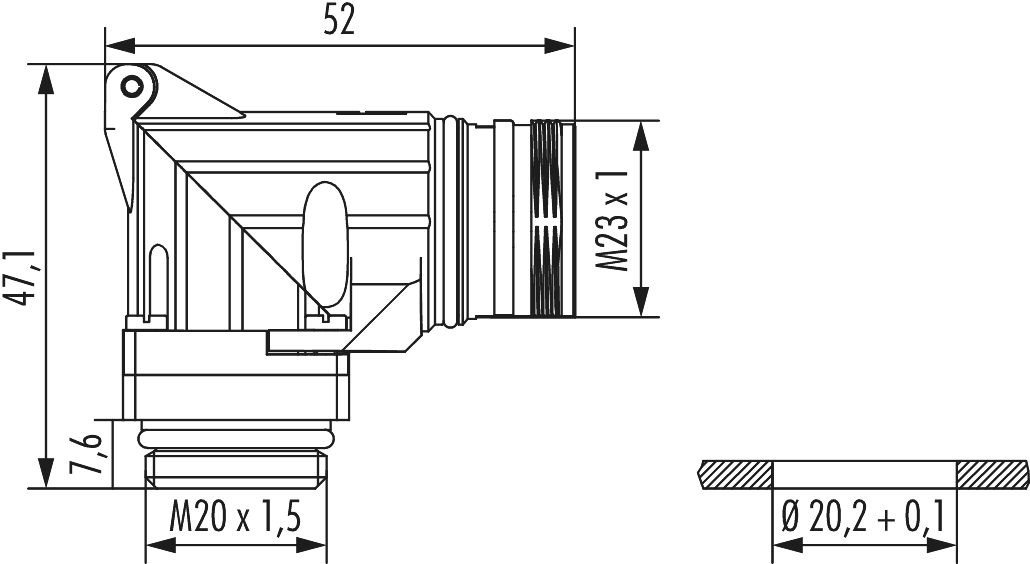

| Panel hole | Ø 20,2 + 0,1 mm |
| Length (L) | 52 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
