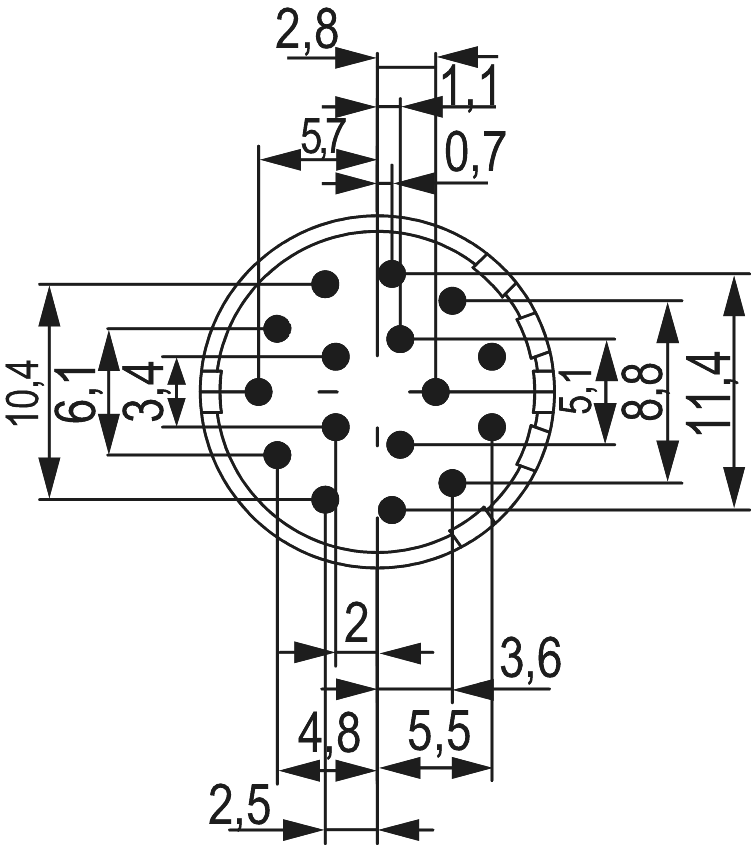

Characteristic of connection | PCB assembly |
Number of poles | 16 |

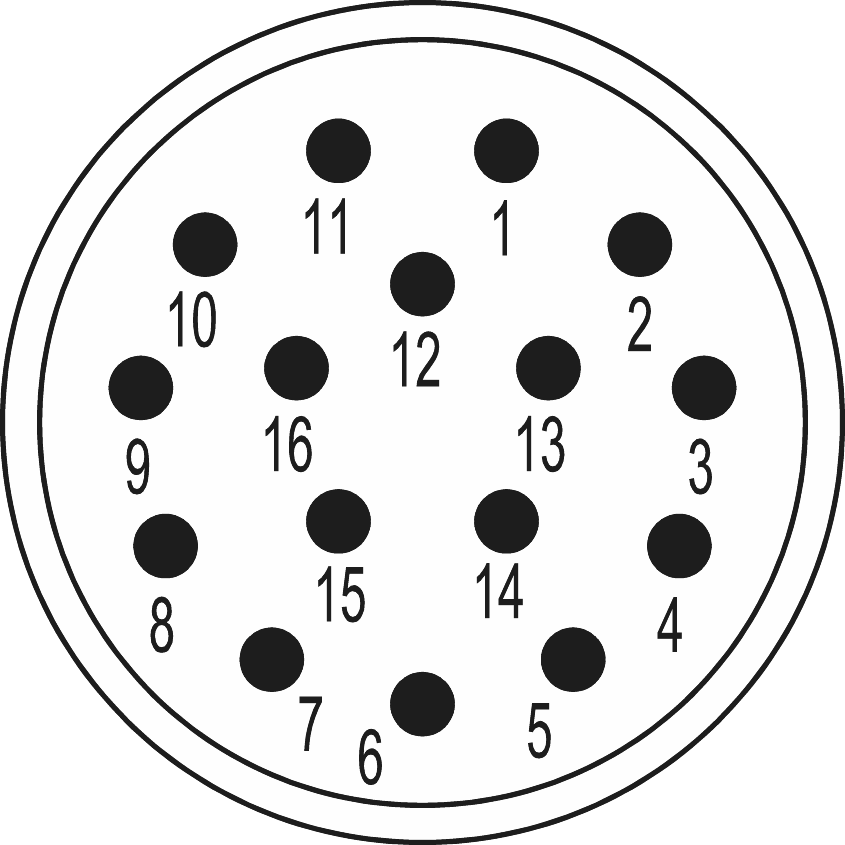

Pole picture | 16 |
Pinout clockwise | |
Dip solder contacts length | 17 mm |
Insert | Pin |
Color contact insert | white |
Material insulating body |
PA 6, PBT |
Number of contacts signal | 16 |
Contact-Ø signal | 1 mm |
Nominal current signal | 8 A |
Nominal voltage at degree of pollution 3 signal | 160 V~ |
Test voltage signal | 500 V~ |
Insulation resistance signal | > 10^8 Ω |
max. contact resistance signal | 3 mOhm |
Temperature range | -40°C to +125°C |
Degree of Protection | 3 |
Flammability | V-0 (UL 94) |
