| Characteristic of connection | Crimp |
| Insert | Pin |

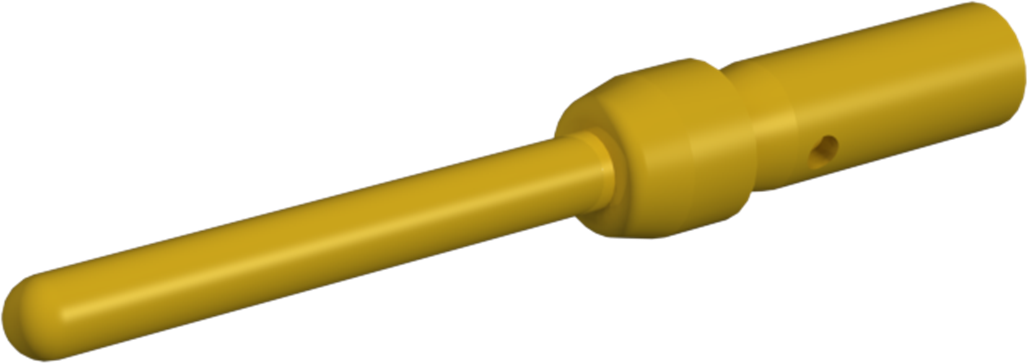

| Crimp contact | Crimp pin signal 1 mm machined |
| Material contact | Copper-zinc alloy |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact-Ø signal | 1 mm |

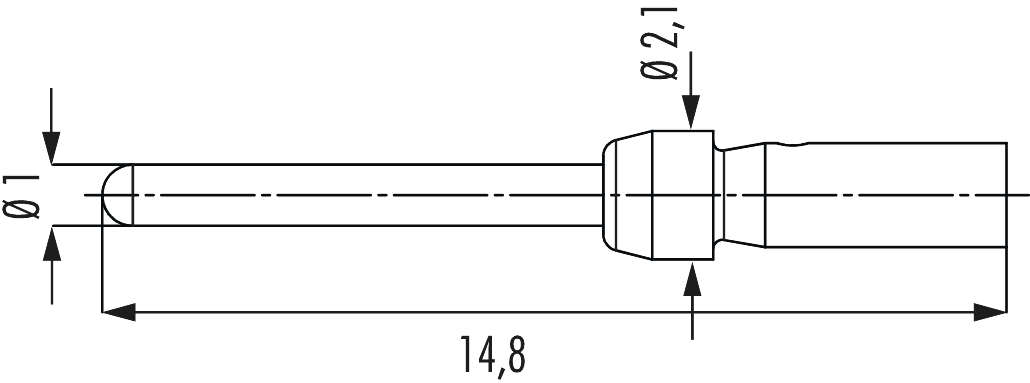

| Length (L) | 14.8 mm |
| Crimp range | 0.14 – 0.56 mm² |
| Suitable crimping tool |
7000900901, 7000900904 |
