| Characteristic of connection | Crimp |
| Insert | Pin |

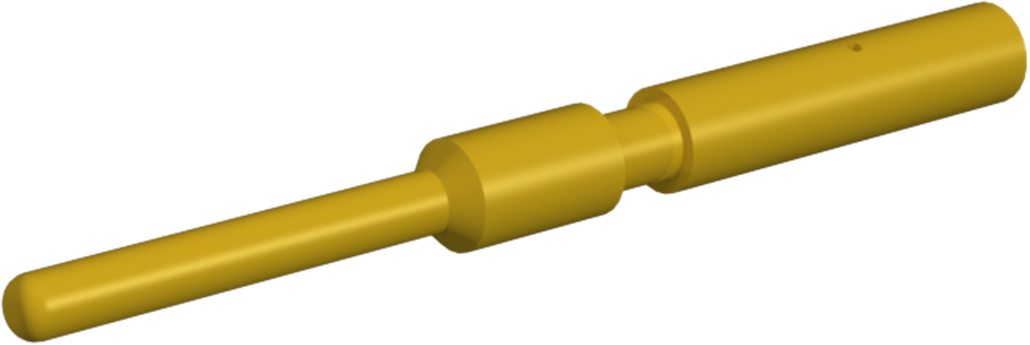

| Crimp contact | Crimp pin signal 2 mm machined |
| Material contact | Copper-zinc alloy |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact-Ø signal | 2 mm |

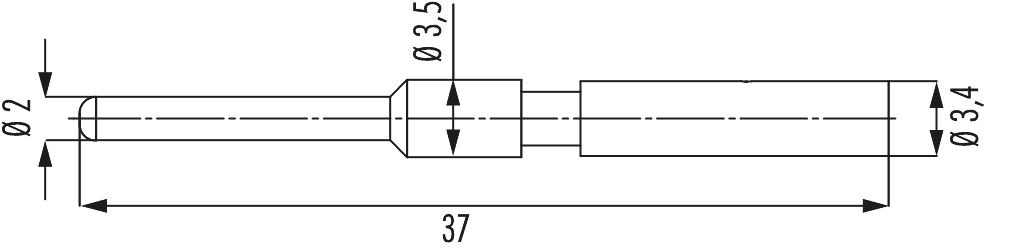

| Length (L) | 37 mm |
| Crimp range | 1 – 4 mm² |
| Suitable crimping tool |
7000900919, 7000900920 |
