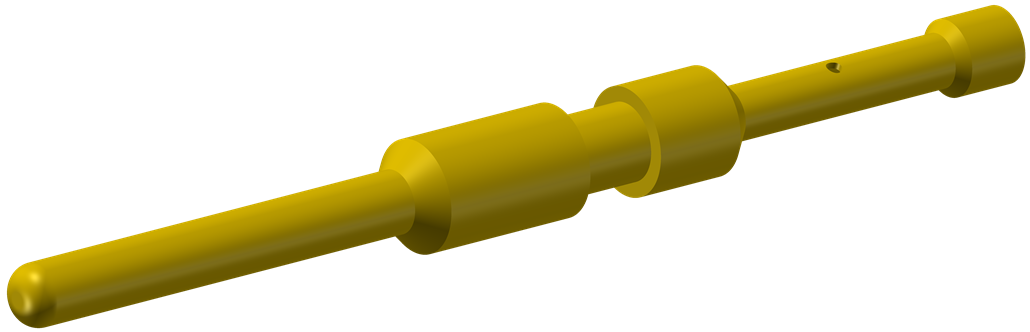

7.015.952.003 M40 Power contacts

Characteristic of connection Crimp
Insert Pin
Crimp contact Crimp pin signal 2 mm machined
Material contact Copper-zinc  alloy
Material contact surface nickel, gold plated (0.25 µm)

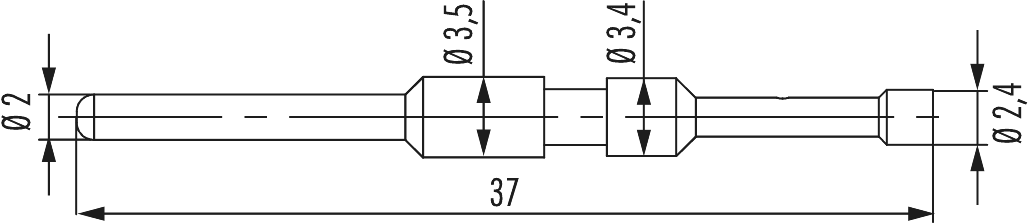

Contact-Ø signal 2 mm
Crimp range 0.14 – 0.75 mm²
Request 3D data
Data sheet
