| Version | with cut-out sealing ring |
| Material | Nickel-plated brass |
| Seal | NBR |
| Protection class |
IP 54, IP 65 in case of additional flat seal at connection thread |
| Temperature range | -20°C to +80°C |
| Variant | Metric |

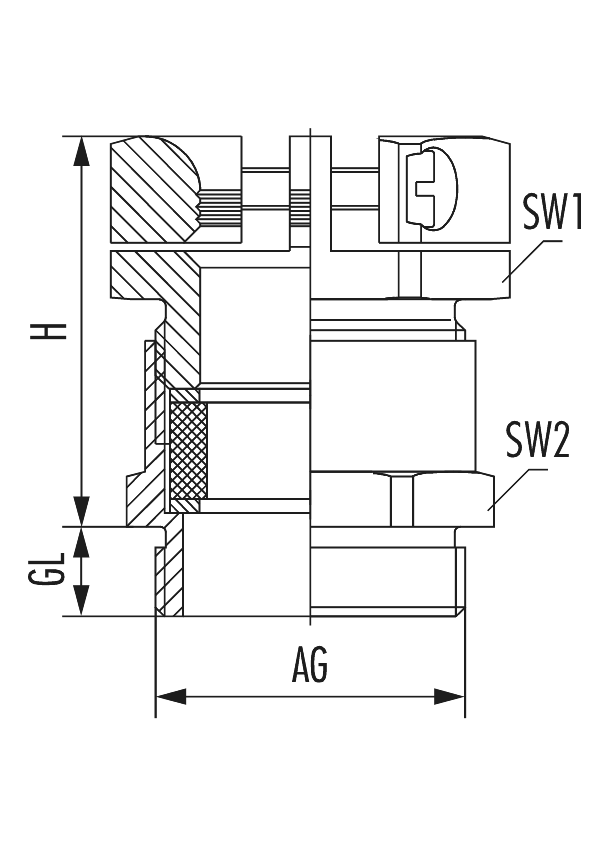

| External thread (AG) | M20 x 1,5 |
| Cable diameter | 10,5 – 15 mm |
| Thread length (GL) | 6 mm |
| Height (H) | 28.5 mm |
| Wrench size (SW1/SW2) | 26/24 mm |
| Product group | Standard |
