| Material | Nickel-plated brass |
| Material o-ring | NBR |
| Protection class |
IP68 - 10bar/30min, IP 69 K |
| Temperature range | -20°C to +95°C |
| Tightening torque | 6.5 Nm |
| Variant | PG |

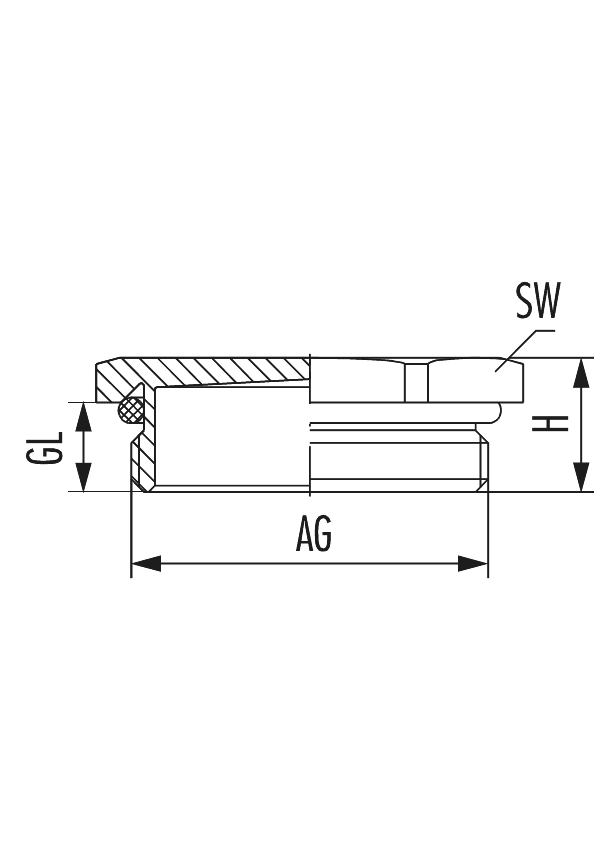

| External thread (AG) | PG 11 |
| Thread length (GL) | 6 mm |
| Height (H) | 9.5 mm |
| Wrench size (SW) | 20 mm |
| Product group | Accesories |
