| Material | Polyamide, fiber reinforced |
| Material o-ring | NBR |
| Protection class |
IP68 - 10bar/30min, IP 69 K |
| Ex-protection level |
II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb |
| Colour | black |
| Variant |
PG, Metric |

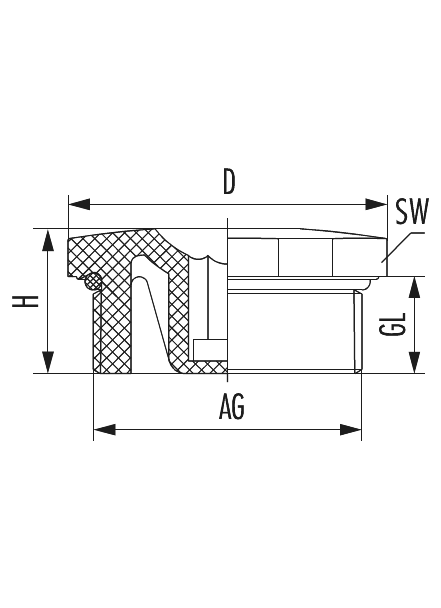

Temperature range Temperature range | External thread (AG) AG | Thread length (GL) (mm) GL (mm) | Height (H) (mm) H (mm) | D (mm) D (mm) | Wrench size (SW) (mm) SW (mm) | Allen key Allen key | Item-No |
|---|---|---|---|---|---|---|---|
| Zurücksetzen | |||||||
| -20°C to +90°C | PG 7 | 8.5 | 13 | 16.5 | 15 | 6 | 1.297.0701.11 |
| -20°C to +90°C | PG 9 | 8.5 | 13 | 20.5 | 19 | 8 | 1.297.0901.11 |
| -20°C to +90°C | PG 11 | 9 | 14.5 | 25.5 | 24 | 8 | 1.297.1101.11 |
| -20°C to +90°C | M12 x 1,5 | 8.5 | 13 | 16.5 | 15 | 6 | 1.297.1201.50 |
| -20°C to +90°C | PG 13,5 | 9 | 14.5 | 25.5 | 24 | 8 | 1.297.1301.11 |
| -20°C to +90°C | PG 16 | 10.5 | 16 | 30.5 | 28 | 8 | 1.297.1601.11 |
| -20°C to +90°C | M16 x 1,5 | 8.5 | 13 | 20.5 | 19 | 8 | 1.297.1601.50 |
| -20°C to +90°C | M20 x 1,5 | 9 | 14.5 | 25.5 | 24 | 8 | 1.297.2001.50 |
| -20°C to +90°C | PG 21 | 11.5 | 17.5 | 38 | 36 | 8 | 1.297.2101.11 |
| -20°C to +90°C | M25 x 1,5 | 10.5 | 16 | 30.5 | 28 | 8 | 1.297.2501.50 |
| -20°C to +90°C | PG 29 | 11.5 | 18 | 48 | 46 | 8 | 1.297.2901.11 |
| -20°C to +90°C | M32 x 1,5 | 11.5 | 17.5 | 38 | 36 | 8 | 1.297.3201.50 |
| -20°C to +90°C | PG 36 | 13.5 | 20 | 60 | 55 | 8 | 1.297.3601.11 |
| -20°C to +90°C | M40 x 1,5 | 11.5 | 18 | 48 | 46 | 8 | 1.297.4001.50 |
| -20°C to +90°C | PG 42 | 13.5 | 20 | 65 | 60 | 8 | 1.297.4201.11 |
| -20°C to +90°C | PG 48 | 14.5 | 21 | 75 | 70 | 8 | 1.297.4801.11 |
| -20°C to +90°C | M50 x 1,5 | 13.5 | 20 | 60 | 55 | 8 | 1.297.5001.50 |
| -20°C to +90°C | M63 x 1,5 | 14.5 | 21 | 75 | 70 | 8 | 1.297.6301.50 |
