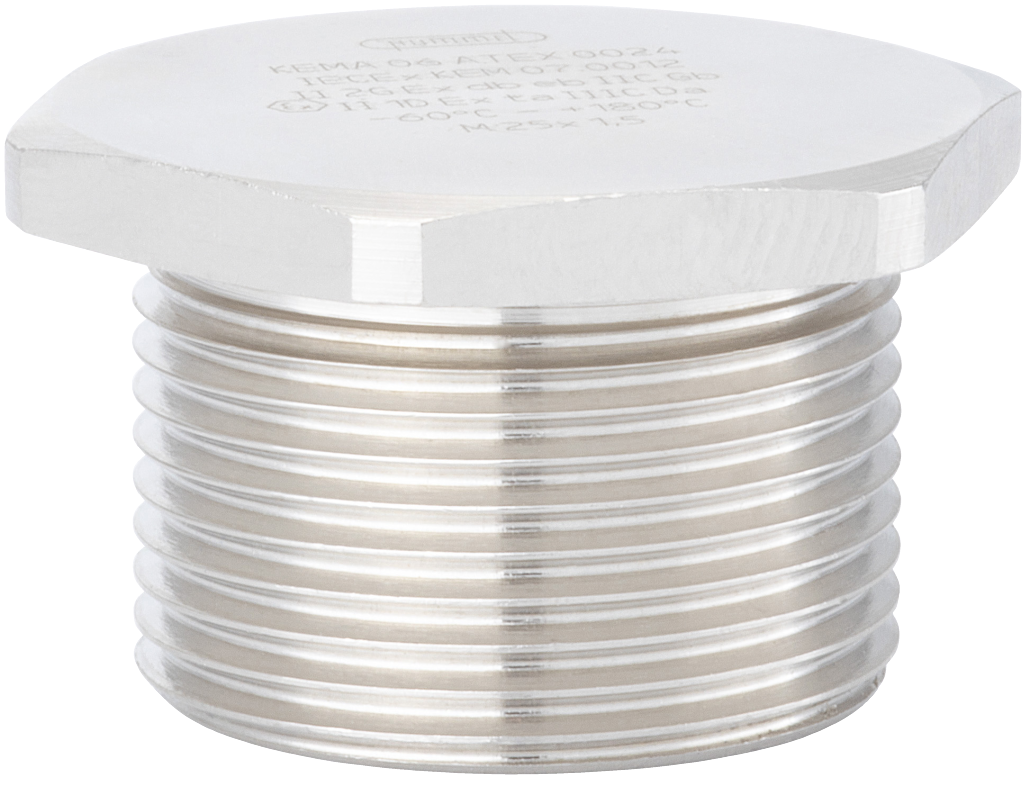

| Material | Nickel-plated brass |
| Protection class |
IP68 - 10bar/30min, IP 69 K |
| Ex-protection level |
II 1D Ex ta IIIC Da, II 2G Ex db eb IIC Gb |
| Tightening torque | 12 Nm |
| Variant | NPT |

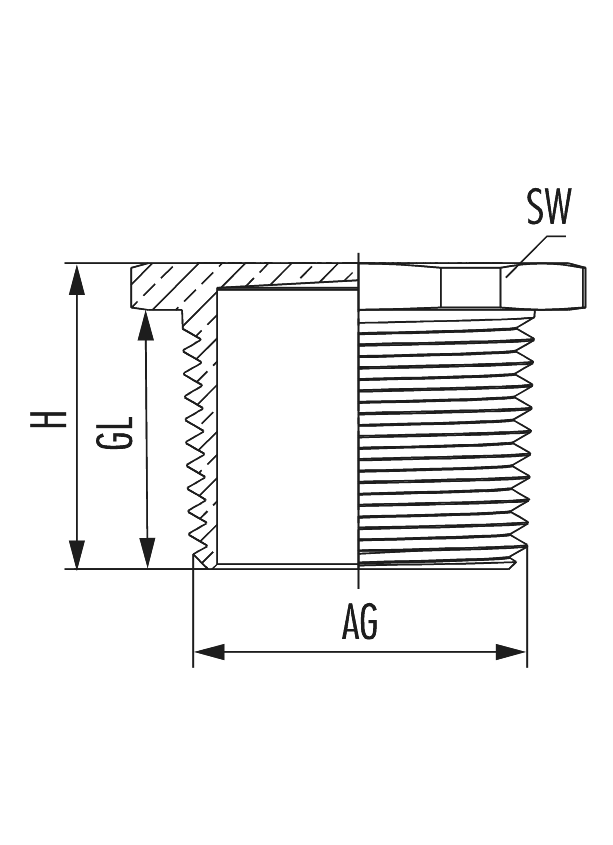

| External thread (AG) | NPT 3/4" |
| Thread length (GL) | 20.5 mm |
| Height (H) | 24 mm |
| Wrench size (SW) | 30 mm |
| Product group | Accesories |
