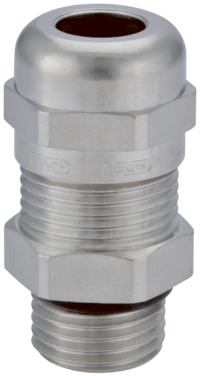

HSK-M-EMC-D

EMC-compatible cable gland for carrying through the braided shield

Material	Nickel-plated brass
Clamping insert	Metallized polyamide
Seal	NBR
Material o-ring	NBR

Protection class	IP68 - 10bar/30min, IP 69 K
Type Rating by	4, 4X, 6, UL 50E
Temperature range	-40°C to +100°C
Variant	Metric, Metric-long, PG, NPT

Download 3D data

Certificates

RoHS
EMV
DNV
CSA
CE
cUL
UL
cUR
UR

Filter

External thread (AG) AG M12 x 1,5 M16 x 1,5 M20 x 1,5 M25 x 1,5 M32 x 1,5 M40 x 1,5 M50 x 1,5 M63 x 1,5 NPT 1/2" NPT 3/4" NPT 3/8" PG 7 PG 9 PG 11 PG 13,5 PG 16 PG 21 PG 29 PG 36 PG 42 PG 48	Cable diameter Cable Ø 3 – 6,5 mm 4 – 8 mm 5 – 10 mm 6 – 12 mm 10 – 14 mm 13 – 18 mm 18 – 25 mm 24 – 32 mm 32 – 38 mm 37 – 44 mm	Thread length (GL) (mm) GL (mm) 5 6 6.5 7 8 9 10 12 13 15	Height (H) (mm) H (mm) 24 25 28 29 31 32 32.5 33 38 39 43 45 46 48 51 52 57.5	Wrench size (SW1/SW2) SW1/SW2 14/14 mm 17/17 mm 17/19 mm 20/20 mm 22/22 mm 22/24 mm 24/24 mm 30/30 mm 40/40 mm 50/50 mm 57/57 mm 64/64 mm 64/68 mm	Item-No
Zurücksetzen
PG 7	3 – 6,5 mm	5	24	14/14 mm	1.631.0700.01
PG 9	4 – 8 mm	6	28	17/17 mm	1.631.0900.01
PG 11	5 – 10 mm	6	29	20/20 mm	1.631.1100.01
M12 x 1,5	3 – 6,5 mm	10	25	14/14 mm	1.631.1200.30
M12 x 1,5	3 – 6,5 mm	6.5	25	14/14 mm	1.631.1200.50
NPT 1/2"	6 – 12 mm	13	32.5	22/24 mm	1.631.1200.70
PG 13,5	6 – 12 mm	6.5	31	22/22 mm	1.631.1300.01
PG 16	10 – 14 mm	6.5	32	24/24 mm	1.631.1600.01
M16 x 1,5	5 – 10 mm	10	32	20/20 mm	1.631.1600.30
M16 x 1,5	5 – 10 mm	6	32	20/20 mm	1.631.1600.50
M16 x 1,5	4 – 8 mm	10	29	17/19 mm	1.631.1609.30
M16 x 1,5	4 – 8 mm	6	29	17/19 mm	1.631.1609.50
M20 x 1,5	10 – 14 mm	10	33	24/24 mm	1.631.2000.30
M20 x 1,5	10 – 14 mm	6	33	24/24 mm	1.631.2000.50
M20 x 1,5	6 – 12 mm	10	32.5	22/22 mm	1.631.2013.30
M20 x 1,5	6 – 12 mm	6	32.5	22/22 mm	1.631.2013.50
PG 21	13 – 18 mm	7	38	30/30 mm	1.631.2100.01
M25 x 1,5	13 – 18 mm	12	39	30/30 mm	1.631.2500.30
M25 x 1,5	13 – 18 mm	7	39	30/30 mm	1.631.2500.50
PG 29	18 – 25 mm	8	43	40/40 mm	1.631.2900.01
M32 x 1,5	18 – 25 mm	12	45	40/40 mm	1.631.3200.30
M32 x 1,5	18 – 25 mm	8	45	40/40 mm	1.631.3200.50
NPT 3/4"	13 – 18 mm	13	39	30/30 mm	1.631.3400.70
PG 36	24 – 32 mm	8	48	50/50 mm	1.631.3600.01
NPT 3/8"	4 – 8 mm	15	29	17/19 mm	1.631.3800.70
M40 x 1,5	24 – 32 mm	15	51	50/50 mm	1.631.4000.30
M40 x 1,5	24 – 32 mm	8	51	50/50 mm	1.631.4000.50
PG 42	32 – 38 mm	9	45	57/57 mm	1.631.4200.01
PG 48	37 – 44 mm	10	46	64/64 mm	1.631.4800.01
M50 x 1,5	32 – 38 mm	15	57.5	57/57 mm	1.631.5000.30
M50 x 1,5	32 – 38 mm	9	57.5	57/57 mm	1.631.5000.50
M63 x 1,5	37 – 44 mm	15	52	64/68 mm	1.631.6300.30
M63 x 1,5	37 – 44 mm	10	52	64/68 mm	1.631.6300.50
