| Characteristic of connection | Crimp |
| Insert | Pin |

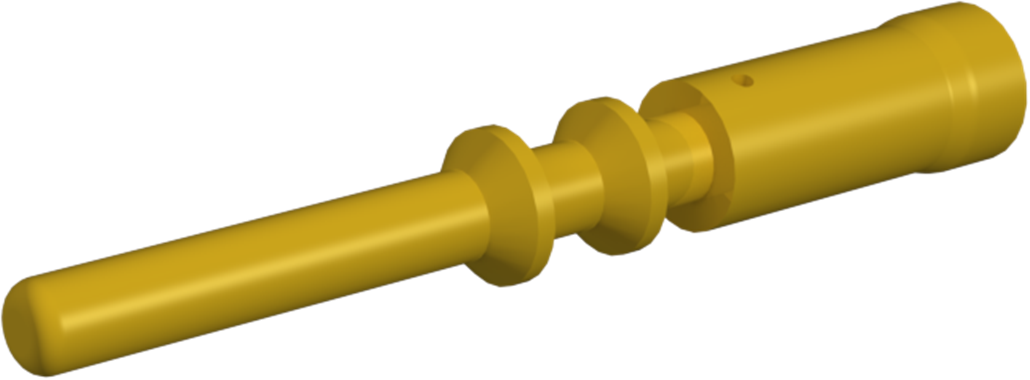

| Crimp contact | Crimp pin power 2 mm machined |
| Material contact | Copper-zinc alloy |
| Material contact surface | nickel, gold plated (0.25 µm) |

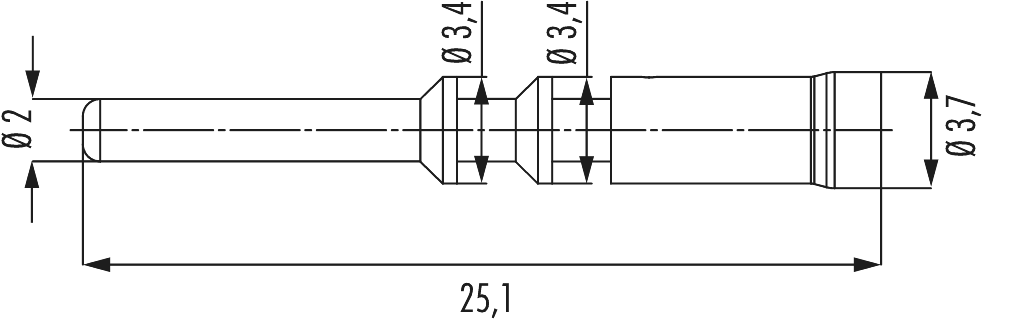

| Contact-Ø power | 2 mm |
| Length (L) | 25.1 mm |
| Crimp range | 2.5 – 4 mm² |
| Suitable crimping tool | 7000900901 |
