| Characteristic of connection | Crimp |
| Insert | Socket |

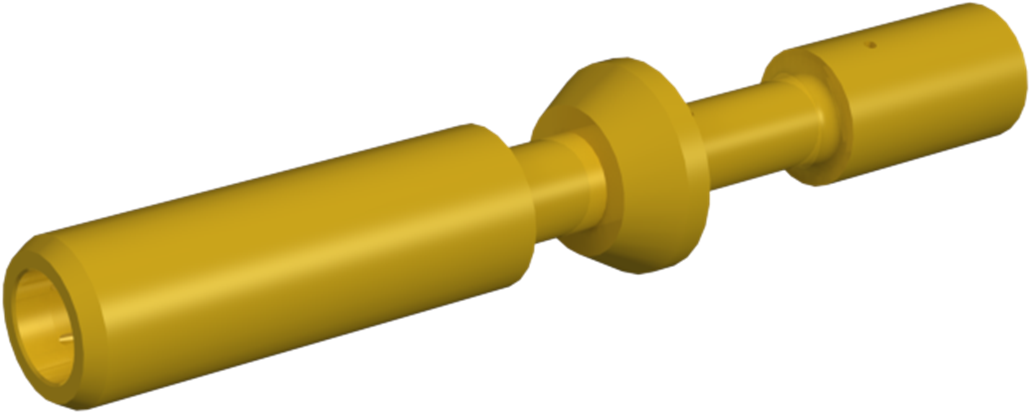

| Crimp contact | Crimp socket power 3,6 mm machined |
| Material contact | Copper-zinc alloy |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact-Ø power | 3.6 mm |

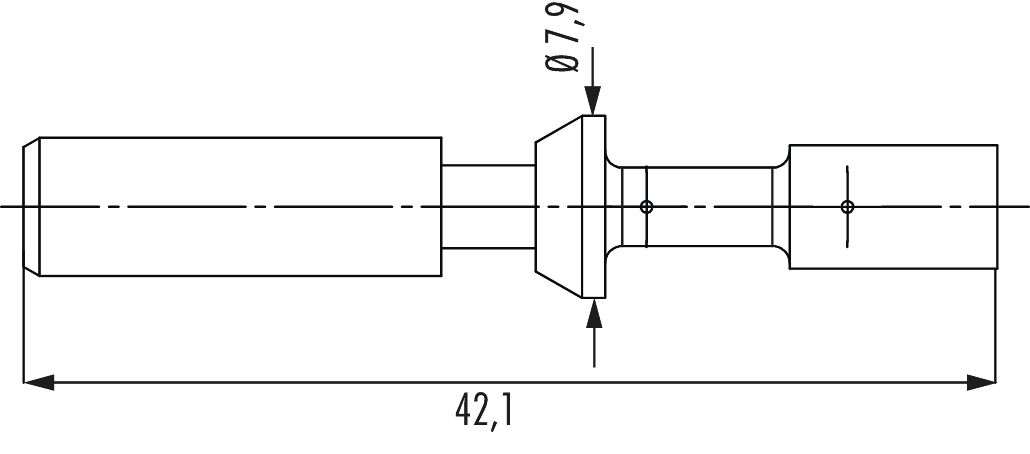

| Length (L) | 42.1 mm |
| Crimp range | 1.5 – 4 mm² |
| Suitable crimping tool |
7000900919, 7000900920, 7010900153 |
