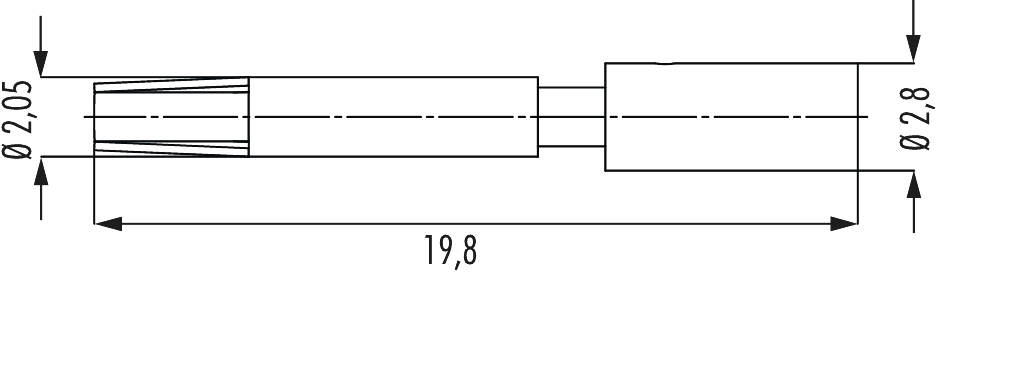

A712-7010911542 M12 Power contacts

Characteristic of connection Crimp
Insert Pin
Crimp contact Crimp socket PE 1,5 mm machined
Material contact Copper-zinc  alloy
Material contact surface nickel, gold plated (0.25 µm)
Contact-Ø power 1.5 mm
Length (L) 19.8 mm
Crimp range 2.5 – 2.5 mm²
Request 3D data
Data sheet
