| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Coding |
S, T |
| Installation type | Front wall |
| External thread (AG) | M20 x 1,5 |
| External thread plug-in side | M12 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Material seals/o-rings | FKM (FPM) |

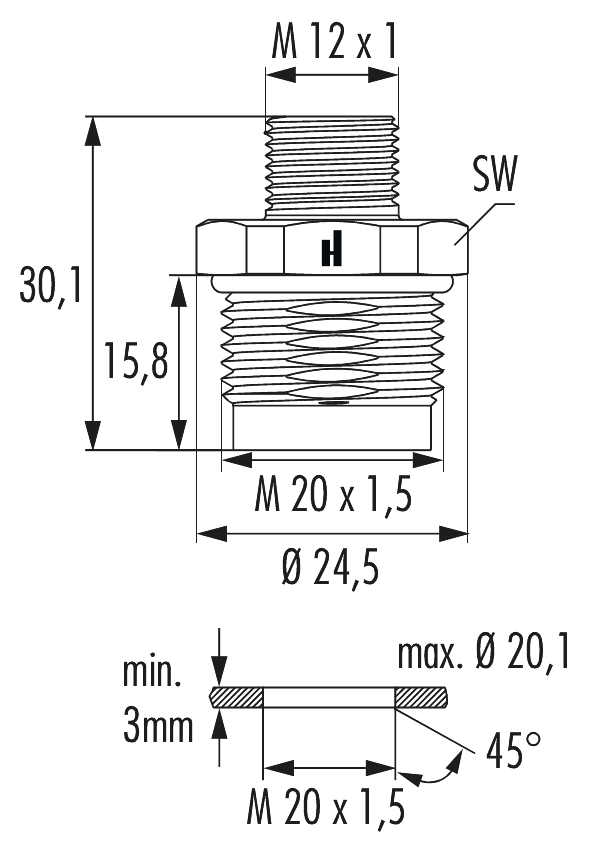

| Panel hole | M20 x 1,5 mm |
| Wall thickness | min. 3 mm |
| Chamfer | 45° downward oriented |
| Wrench size (SW) | 23 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
| suitable contact inserts |
A712-7S05931105, A712-7T05904105 |
