| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Coding |
S, T |
| Installation type | Front wall |

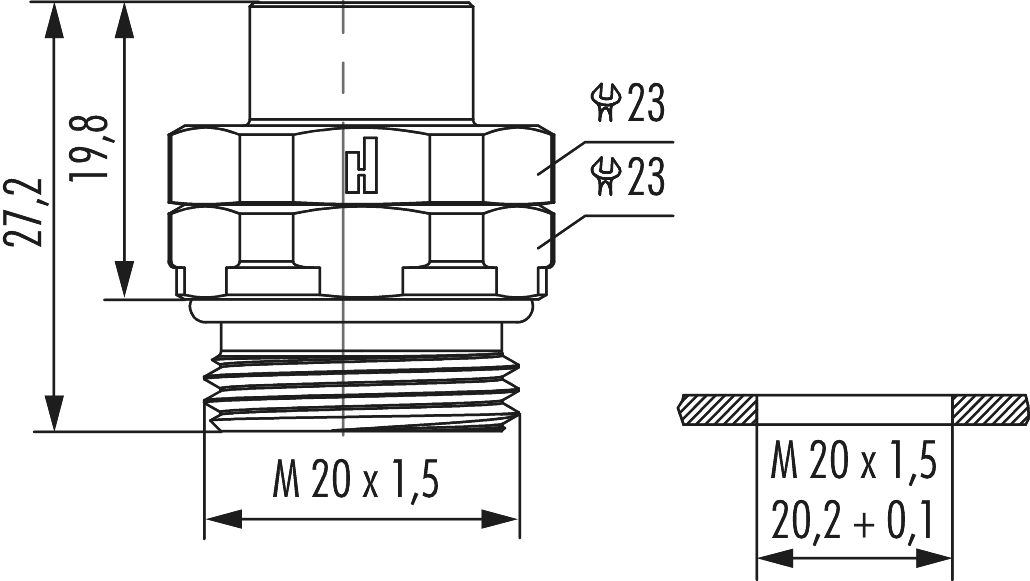

| External thread (AG) | M20 x 1,5 |
| Internal thread plug-in side | M12 x 1 |
| Locking type | Screw |
| Shield | unshielded |
| Material seals/o-rings | FKM (FPM) |
| Wrench size (SW1/SW2) | 23/23 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
| suitable contact inserts |
A712-7S05931106, A712-7T05904106 |
