| Material housing |
brass, Zinc Die Cast |
| Material housing surface | Nickel |
| Coding |
K, L |
| Version | Screw |

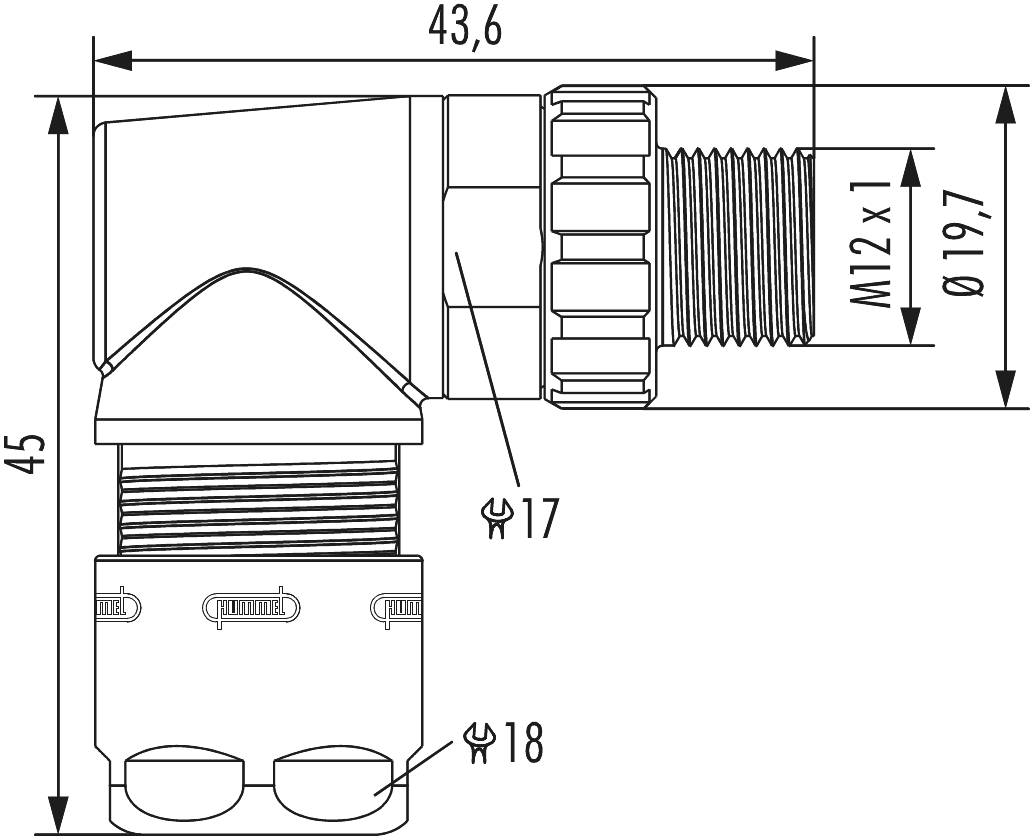

| External thread plug-in side | M12 x 1 |
| Knurled screw-Ø plug-in side | 19.7 mm |
| Locking type | Screw |
| Shield | shielded |
| Material seals/o-rings |
HNBR, NBR |
| Wrench size (SW1/SW2) | 17/18 mm |
| Cable diameter | 5 – 9 mm |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
| suitable contact inserts |
A712-7K03941101, A712-7L03941101 |
