| Material housing |
Aluminium alloy, Copper-Zinc alloy, Zinc Die Cast |
| Material housing surface | Nickel |
| Installation type | Front wall |
| External thread (AG) | M16 x 1,5 |
| External thread plug-in side | M16 x 0,75 |
| Locking type | Screw |
| Shield | unshielded |
| Material seals/o-rings |
FKM (FPM), NBR |

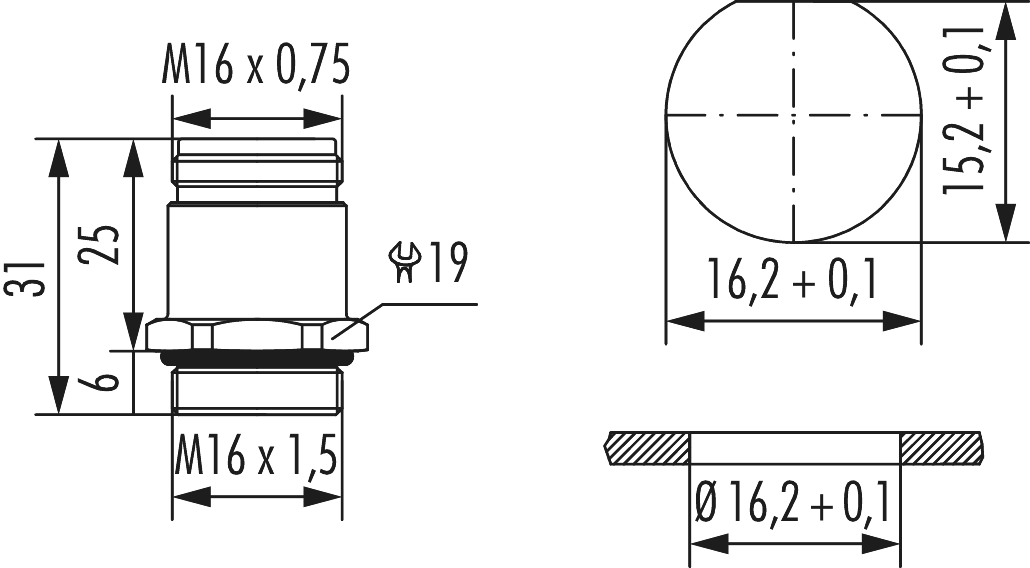

| Panel hole | Ø 16,2 + 0,1 mm |
| Wrench size (SW) | 19 mm |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
